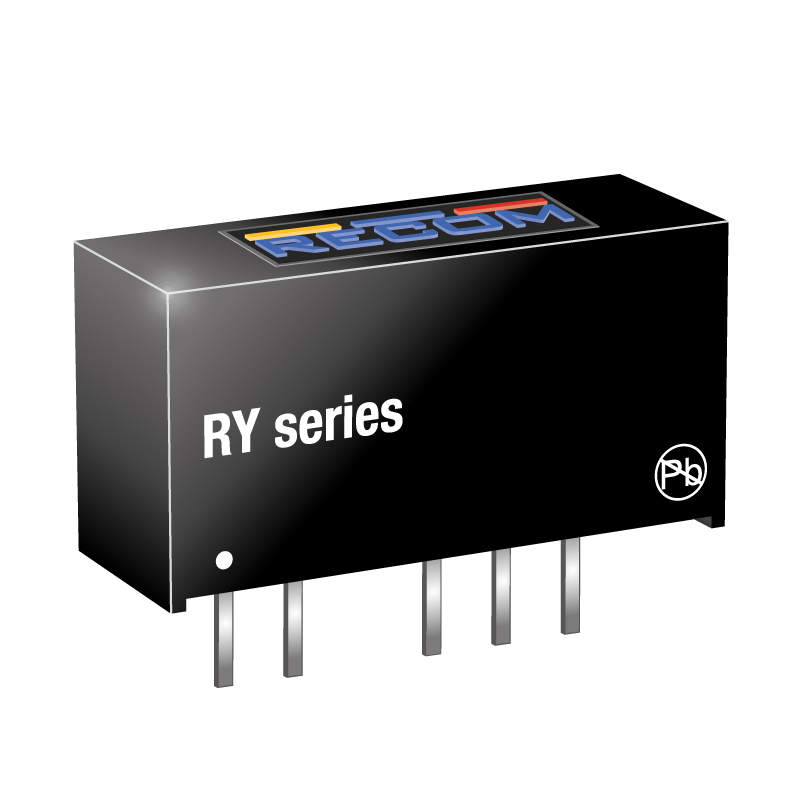

RY-1205S - Recom Power
1W DC/DC-Converter 'ECONOLINE' SIP7 1kV reg; V. In: 12; V. Out: 05; mA. Out: 200
Technical Details
| Case/Package | SIP |
| Country of Origin | Mainland China, Taiwan |
| Current - Output 1 | 200mA |
| Depth | 19.65mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Efficiency | 60% |
| Features | SCP |
| Height | 10.2mm |
| Height - Seated (Max) | 10.45mm |
| Introduction Date | 2013-06-11 |
| Isolation | Isolated |
| Isolation Voltage | 1000Vrms |
| Lead Free | Lead Free |
| Length | 19.65mm |
| Lifecycle Status | Production |
| Max Input Voltage | 12.6V |
| Max Input Voltage (DC) | 12.6V |
| Max Operating Temperature | 70°C |
| Max Output Current | 200mA |
| Max Output Power | 1W |
| Max Output Voltage | 5V |
| Max Power Dissipation | 1W |
| Min Input Voltage | 11.4V |
| Min Input Voltage (DC) | 11.4V |
| Min Operating Temperature | -40°C |
| Mount | PCB, Through Hole |
| Nominal Input Voltage | 12V |
| Nominal Output Voltage | 5V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Number of Terminals | 5 |
| Output Current | 200mA |
| Output Power | 1W |
| Output Voltage | 5V |
| Power Rating | 1W |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Terminal Pitch | 2.54mm |
| Voltage - Output 1 | 5V |
| Weight | 2.8g |
| Width | 7.05mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images

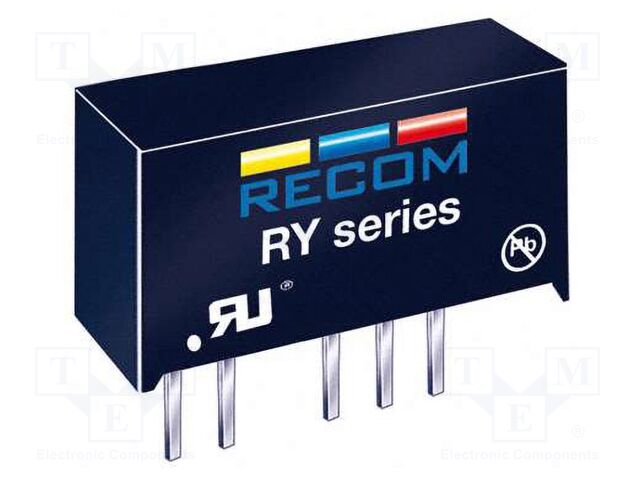

TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Murata Power Solutions | Production | ||
| Murata | Obsolete | ||
| Murata Power Solutions | Obsolete | ||
| Recom Power | Production | ||
| Murata Power Solutions | Production | ||
| Murata Power Solutions | Production | ||
| Murata Power Solutions | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production |
