Technical Details
| Access Time | 15ns |
| Bus Directional | Unidirectional |
| Case/Package | PDIP |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Cycle Time | 25ns |
| Export Control Classification Number (ECCN) Code | NLR |
| Element Configuration | Dual |
| Part Family | 7202 |
| FWFT Support | No |
| Height | 3.8mm |
| Height - Seated (Max) | 4.699mm |
| Harmonized Tariff Schedule (HTS) Code | 8540000000 |
| Interface | Parallel |
| Introduction Date | 1988-01-01 |
| Lead Free | Lead Free |
| Length | 36.6mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Frequency | 40MHz |
| Max Operating Temperature | 85°C |
| Max Supply Current | 80mA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| MSL | 1 |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Number of Pins | 28 |
| Number of Terminals | 28 |
| Operating Supply Voltage | 5V |
| Package Quantity | 0 |
| Pitch | 2.54mm |
| Programmable Flags Support | No |
| REACH SVHC | Yes |
| Retransmit Capability | Yes |
| RoHS | Compliant |
| Temperature Grade | Industrial |
| Terminal Pitch | 2.54mm |
| Thickness | 3.8mm |
| Width | 15.24mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

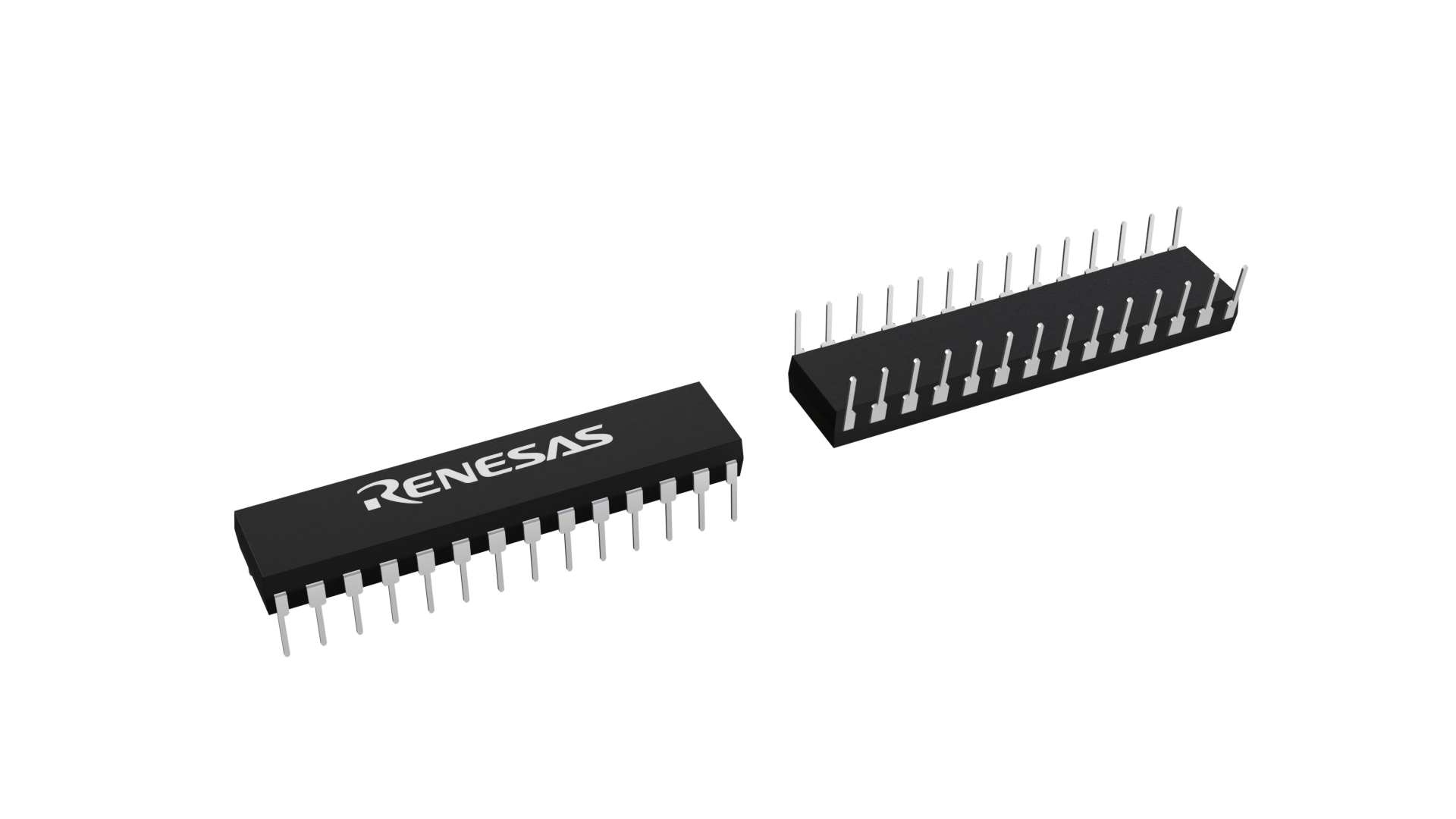

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Rochester Electronics | Unknown | ||
| Rochester Electronics | Obsolete | ||
| AMD | Production | ||
| Texas Instruments | Unknown | ||
| AMD | Production | ||
| Texas Instruments | Unknown | ||
| Rochester Electronics | Obsolete | ||
| Logic Devices | Obsolete | ||
| Sharp | Obsolete | ||
| Renesas | Production |
