Technical Details
| Access Time | 6.5ns |
| Bus Directional | Unidirectional |
| Case/Package | TQFP |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Cycle Time | 10ns |
| Data Bus Width | 18b |
| Density | 288kb |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Dual |
| Part Family | 72V265 |
| Frequency | 100MHz |
| FWFT Support | Yes |
| Height | 1.4mm |
| Height - Seated (Max) | 1.6mm |
| Harmonized Tariff Schedule (HTS) Code | 8540000000 |
| Interface | Parallel |
| Introduction Date | 1994-01-01 |
| Lead Free | Lead Free |
| Length | 14mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Frequency | 100MHz |
| Max Operating Temperature | 70°C |
| Max Supply Current | 55mA |
| Max Supply Voltage | 3.6V |
| Memory Type | CMOS |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 3V |
| MSL | 3 |
| Mount | Surface Mount |
| Nominal Supply Current | 55mA |
| Number of Circuits | 1 |
| Number of Pins | 64 |
| Number of Terminals | 64 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 0 |
| Pitch | 800µm |
| Programmable Flags Support | Yes |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Retransmit Capability | Yes |
| RoHS | Compliant |
| Sync/Async | Synchronous |
| Temperature Grade | Commercial |
| Terminal Pitch | 800µm |
| Thickness | 1.4mm |
| Width | 14mm |
| Word Size | 18b |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

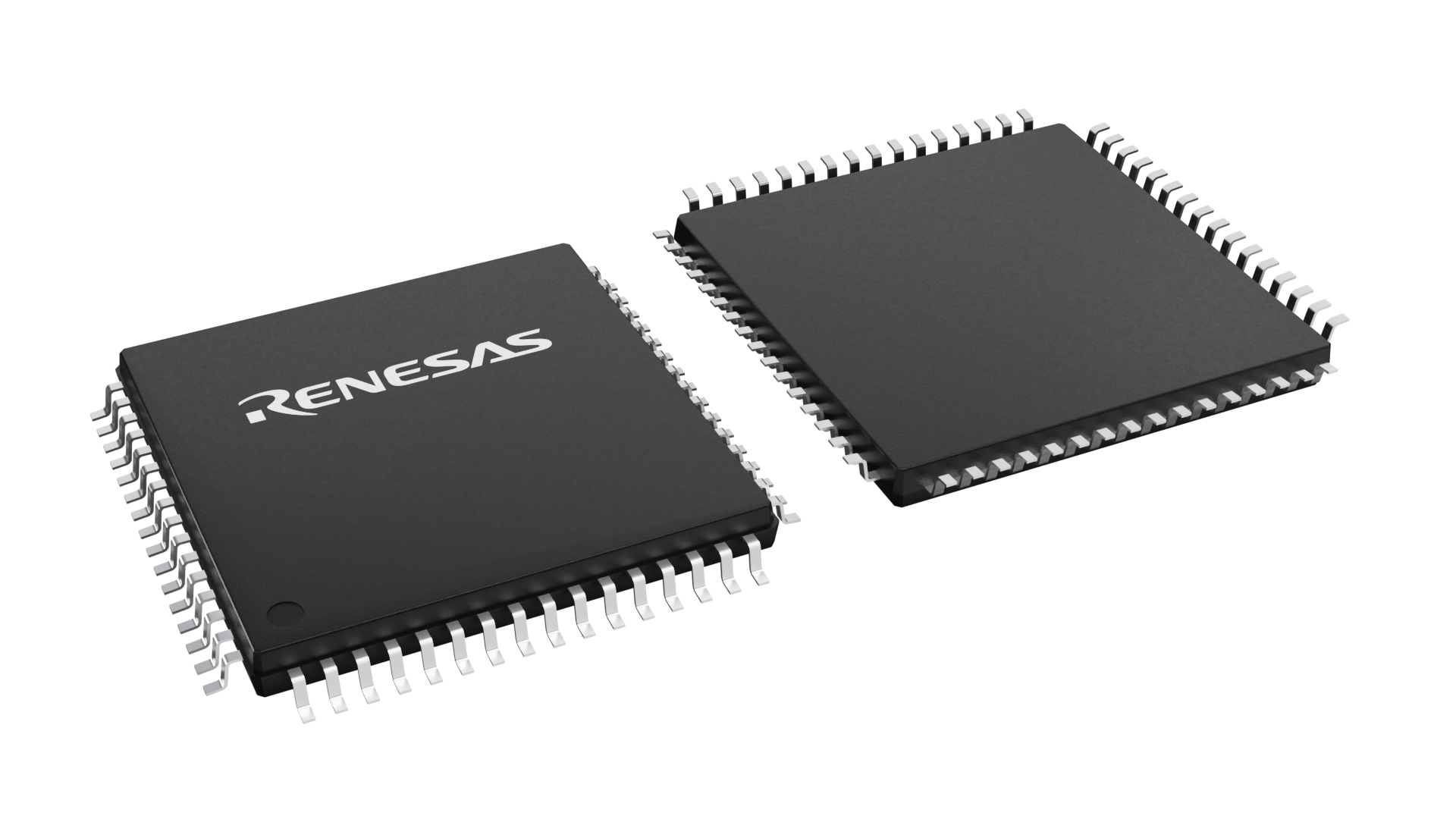

Images
