Technical Details
| Body Material | Ceramic |
| Contact Plating | Gold |
| Country of Origin | USA |
| Export Control Classification Number (ECCN) Code | 9A515 |
| Part Family | HS-303ARH |
| Height | 0m |
| Height - Seated (Max) | 2.92mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2006-12-14 |
| Leakage Current | 100nA |
| Length | 9.9mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 15V |
| Max Operating Temperature | 125°C |
| Min Input Voltage | -15V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Number of Outputs | 4 |
| Number of Pins | 14 |
| Number of Terminals | 14 |
| On-State Resistance | 70Ω |
| Operating Supply Voltage | 15V |
| Packaging | Bulk |
| Pitch | 1.3mm |
| Radiation Hardening | Yes |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Military |
| Terminal Pitch | 1.27mm |
| Turn-Off Delay Time | 450ns |
| Turn-On Delay Time | 500ns |
| Width | 6.6mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : Yes
REACH SVHC : Yes

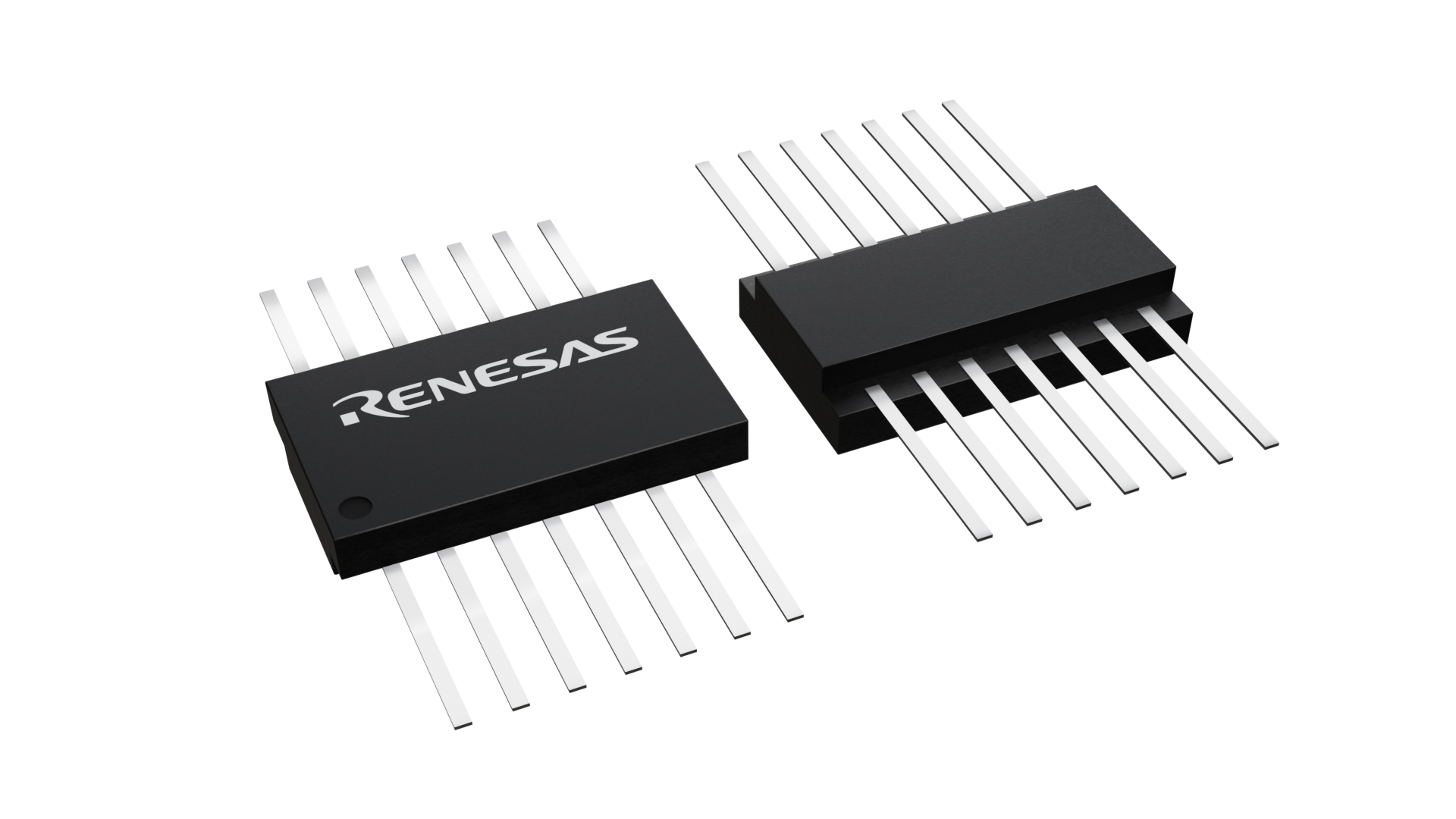

Images
