Technical Details
| Case/Package | SSOP |
| Contact Plating | Tin |
| Data Rate | 250kbps |
| Export Control Classification Number (ECCN) Code | EAR99 |
| ESD Protection | Yes |
| Part Family | ICL3221 |
| Height | 1.75mm |
| Height - Seated (Max) | 2mm |
| Harmonized Tariff Schedule (HTS) Code | 8540000000 |
| Introduction Date | 2020-10-31 |
| Lead Free | Lead Free |
| Length | 6.2mm |
| Lifecycle Status | Production |
| Logic Function | Receiver, Transceiver |
| Low Level Output Current | 1.6mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 85°C |
| Max Supply Current | 1mA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| MSL | 3 |
| Mount | Surface Mount |
| Nominal Supply Current | 1mA |
| Number of Circuits | 1 |
| Number of Drivers | 1 |
| Number of Pins | 16 |
| Number of Receivers | 1 |
| Number of Terminals | 16 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 3.15V |
| Packaging | Bulk |
| Pitch | 700µm |
| Propagation Delay | 300ns |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Temperature Grade | Industrial |
| Terminal Pitch | 650µm |
| Width | 5.3mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

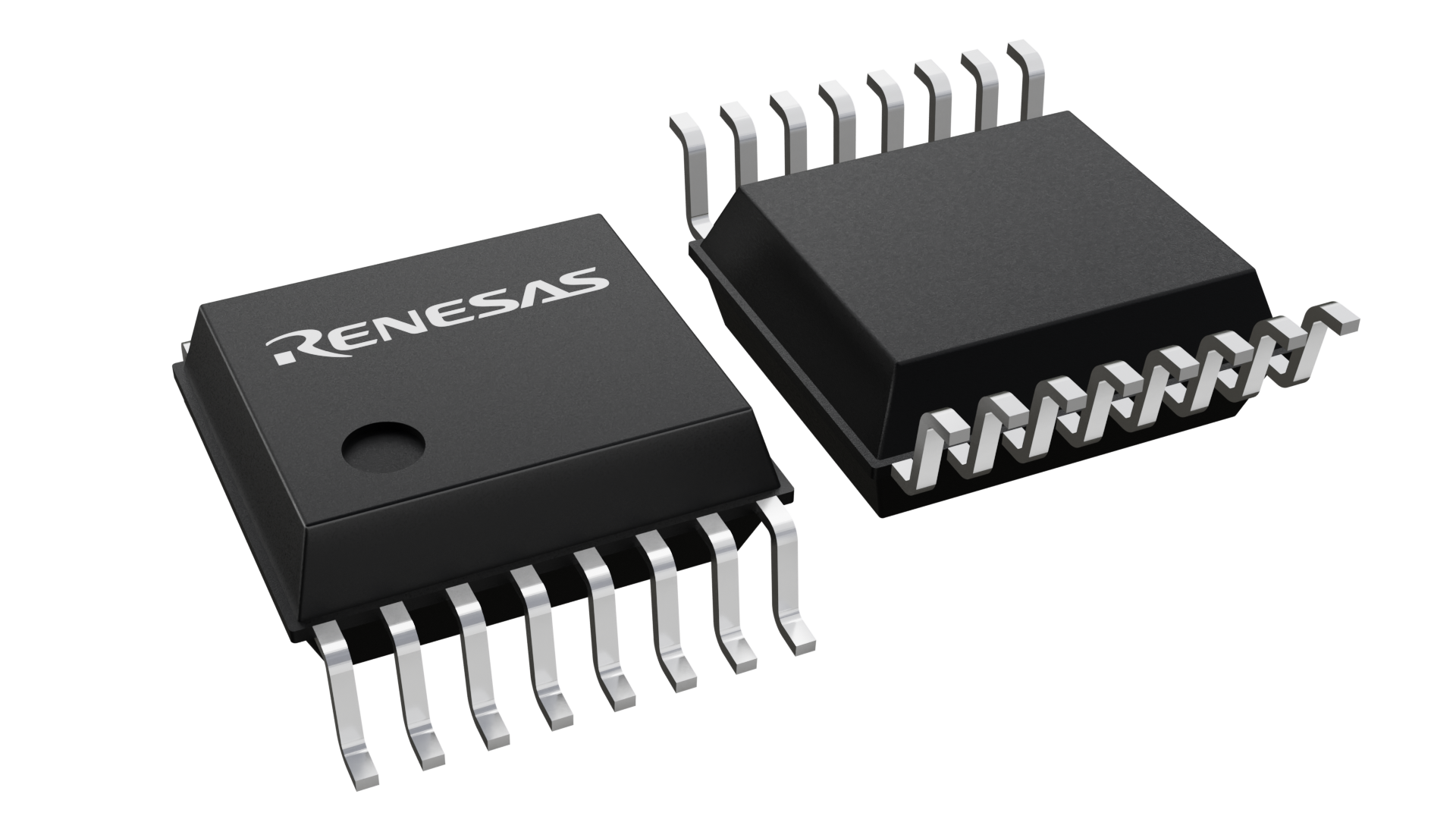

Images
