IS82C59AZX96 - Renesas
Ic, interrupt Controller, cmos, ldcc, 28Pin Rohs Compliant: Yes |Renesas IS82C59AZX96
Technical Details
| Case/Package | PLCC |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Part Family | 82C59A |
| Height | 0m |
| Height - Seated (Max) | 4.57mm |
| Harmonized Tariff Schedule (HTS) Code | 8540000000 |
| Introduction Date | 1988-01-01 |
| Lead Free | Lead Free |
| Length | 11.4mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Max Supply Current | 10µA |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 4.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| MSL | 3 |
| Mount | Surface Mount |
| Number of Interrupts | 8 |
| Number of Pins | 28 |
| Number of Terminals | 28 |
| Operating Supply Voltage | 5V |
| Pitch | 1.3mm |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Industrial |
| Terminal Pitch | 1.27mm |
| Width | 11.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

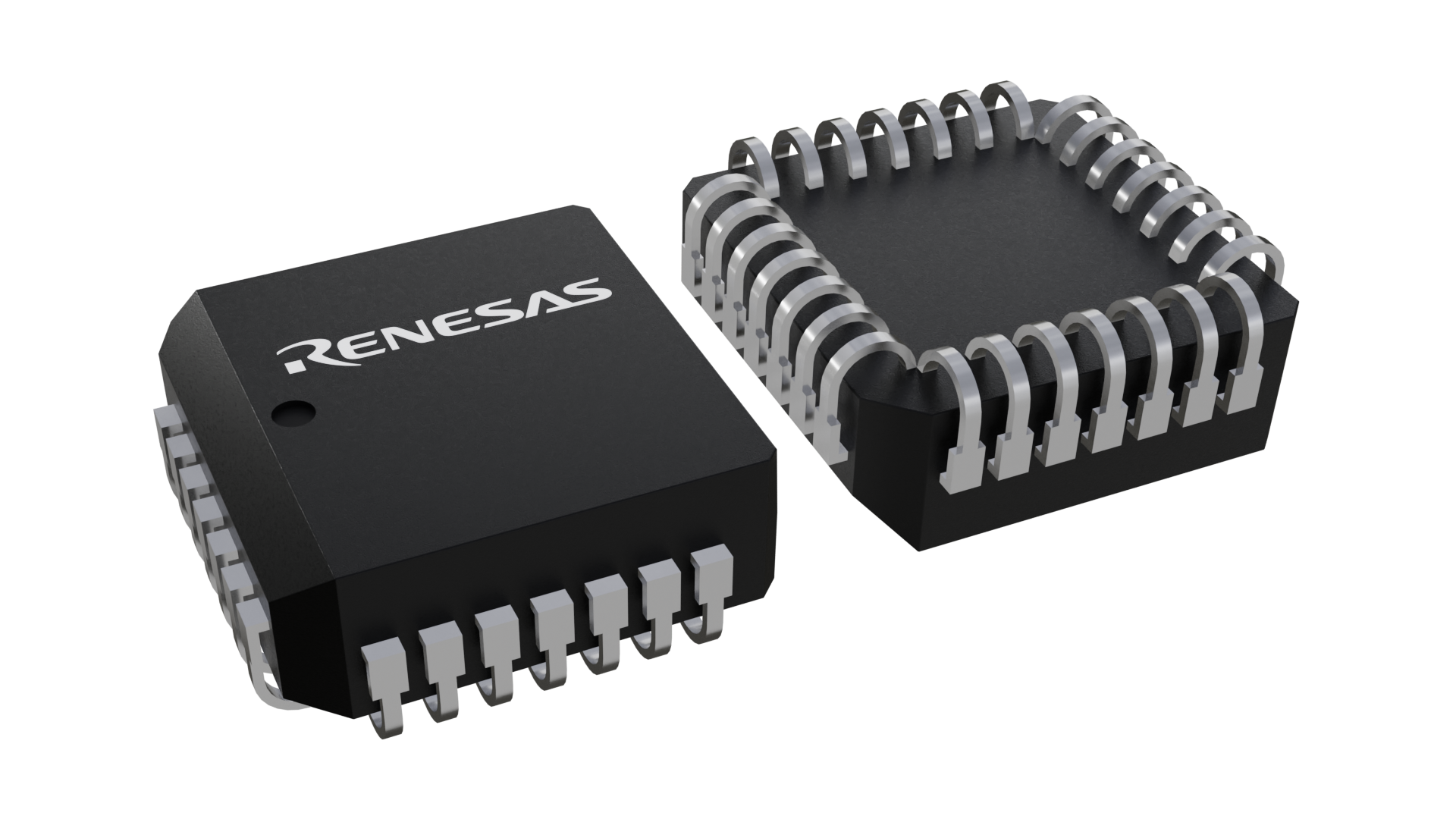

Images
Future Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Tundra Semiconductor | Obsolete | ||
| Renesas | Obsolete | ||
| Intersil | Obsolete | ||
| Renesas | Production | ||
| Renesas | Production | ||
| Renesas | Production | ||
| Rochester Electronics | Production | ||
| Intersil | Obsolete | ||
| AMD | Obsolete | ||
| Rochester Electronics | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Avnet |
US: 750
|
$ | ||||||||
| DigiKey |
DE: 0
|
$ | 24.86 | 24.86 | ||||||
| Avnet Silica |
EU: 0
|
$ | ||||||||
| Future Electronics |
CA: 0
|
$ | 19.93 | 19.93 | ||||||
| Newark |
US: 0
|
$ | ||||||||
