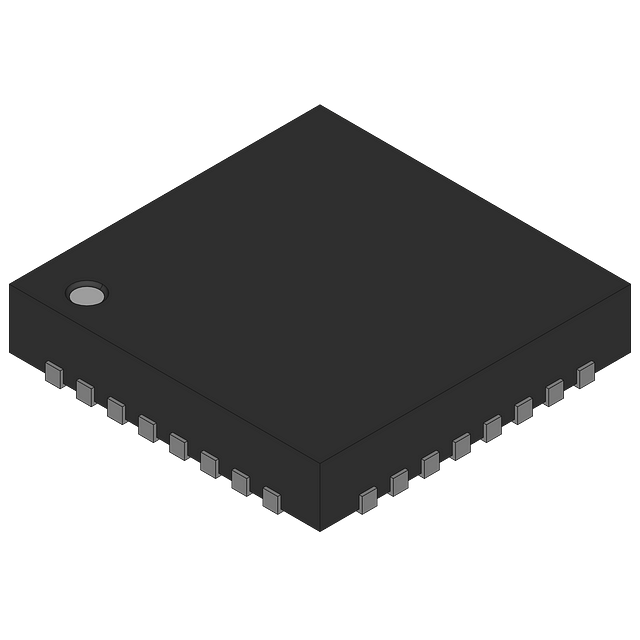

ISL6421ERZ - Renesas
Active Lead Free BOOST NO LEAD Linear Voltage Regulator IC 85C 0.95A 240kHz 5mm
Technical Details
| Case/Package | QFN |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height - Seated (Max) | 1mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2003-11-04 |
| Lead Free | Lead Free |
| Length | 5mm |
| Lifecycle Status | Obsolete |
| Max Input Voltage | 14V |
| Max Operating Temperature | 85°C |
| Max Output Current | 950mA |
| Max Supply Current | 8mA |
| Max Switching Frequency | 240kHz |
| Min Input Voltage | 8V |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Nominal Input Voltage | 12V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 32 |
| Number of Terminals | 32 |
| Output Voltage | 18V |
| Packaging | Bulk |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Terminal Pitch | 500µm |
| Topology | Boost |
| Width | 5mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Renesas | Obsolete | ||
| Renesas | Obsolete | ||
| Renesas | Obsolete | ||
| Renesas | Obsolete | ||
| Renesas | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown |
