Technical Details
| Case/Package | WFDFN |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Part Family | ISL80015 |
| Height | 750µm |
| Height - Seated (Max) | 800µm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2015-04-01 |
| Length | 2mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Max Output Current | 2.9A |
| Max Output Voltage | 5.5V |
| Max Switching Frequency | 1.2MHz |
| Min Input Voltage | 2.7V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 600mV |
| MSL | 3 |
| Mount | Surface Mount |
| Nominal Input Voltage | 3.6V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Number of Terminals | 8 |
| Output Configuration | Positive |
| Output Current | 1.5A |
| Output Type | Adjustable |
| Packaging | Tape & Reel (TR) |
| Pitch | 500µm |
| Quiescent Current | 7mA |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switching Frequency | 1MHz |
| Synchronous Rectifier | Yes |
| Temperature Grade | Industrial |
| Terminal Pitch | 500µm |
| Topology | Buck |
| Width | 2mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

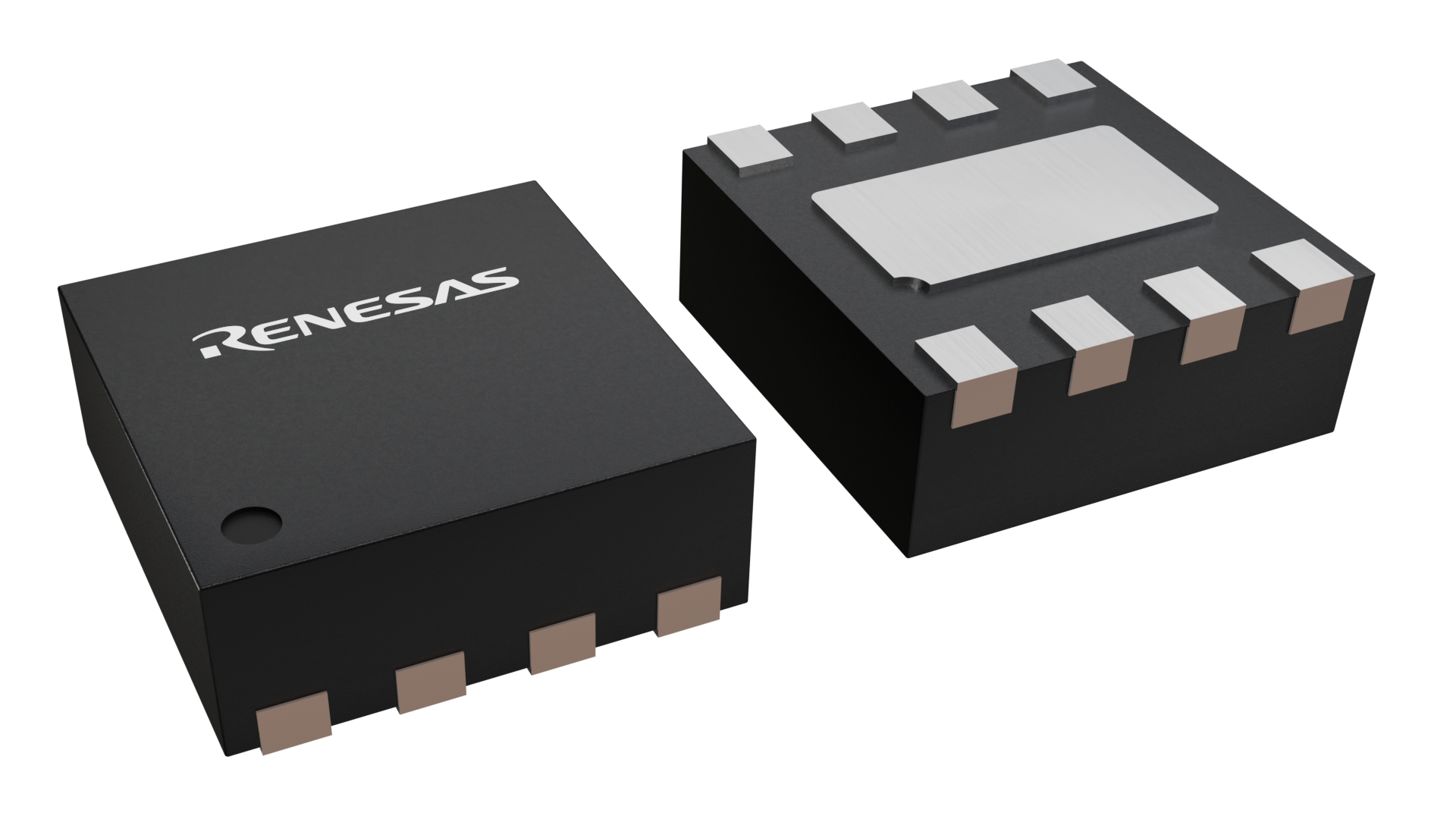

Images
