ISL8485CP - Renesas
R-PDIP-T8 Tube RS422RS485 EIA-422; EIA-485 interface driver 70mV 9.585mm 150ns 5Mbps
Technical Details
| Case/Package | DIP |
| Data Rate | 5Mbps |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height - Seated (Max) | 5.33mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2003-05-27 |
| Lead Free | Contains Lead |
| Length | 9.585mm |
| Lifecycle Status | Obsolete |
| Low Level Output Current | 4mA |
| Max Operating Temperature | 70°C |
| Max Supply Current | 900µA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Number of Receivers | 1 |
| Number of Terminals | 8 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 5V |
| Packaging | Bulk |
| Propagation Delay | 50ns |
| REACH SVHC | No |
| RoHS | Non-Compliant |
| Temperature Grade | Commercial |
| Terminal Pitch | 2.54mm |
| Width | 7.62mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

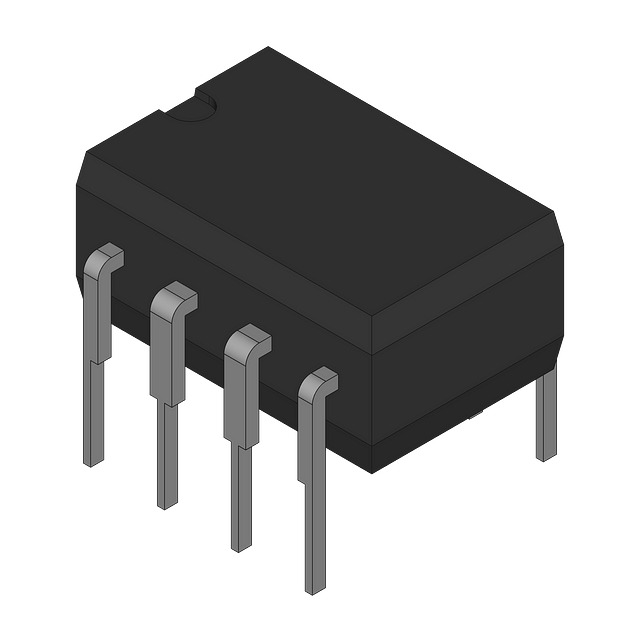

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Renesas | Obsolete | ||
| Texas Instruments | Unknown | ||
| Renesas | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| STMicroelectronics | Obsolete | ||
| Texas Instruments | Obsolete | ||
| Sipex | Obsolete | ||
| Texas Instruments | Unknown |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 3493
|
$ | 0.9513 | 0.7896 | 0.704 | |||||
| Verical |
US: 3377
|
$ | 0.987 | 0.88 | ||||||
| DigiKey Marketplace |
DE: 3493
|
$ | 1.2562 | 1.2562 | ||||||
