ISL8488IP - Renesas
RoHS Compliant DIFFERENTIAL SCHMITT TRIGGER 2003 CMOS (Type) 85C 5V 250kbps 2000ns
Technical Details
| Case/Package | DIP |
| Data Rate | 250kbps |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height - Seated (Max) | 5.33mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2003-05-27 |
| Lead Free | Contains Lead |
| Length | 9.585mm |
| Lifecycle Status | Obsolete |
| Low Level Output Current | 4mA |
| Max Operating Temperature | 85°C |
| Max Supply Current | 250µA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Nominal Supply Current | 250µA |
| Number of Circuits | 1 |
| Number of Receivers | 1 |
| Number of Terminals | 8 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 5V |
| Packaging | Bulk |
| Propagation Delay | 2µs |
| REACH SVHC | No |
| RoHS | Non-Compliant |
| Temperature Grade | Industrial |
| Terminal Pitch | 2.54mm |
| Width | 7.62mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

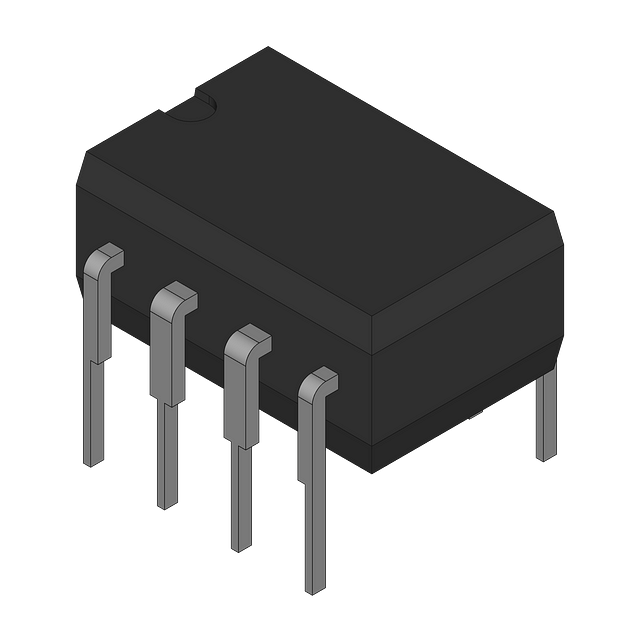

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Renesas | Obsolete | ||
| Renesas | Obsolete | ||
| Texas Instruments | Unknown | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Production | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Obsolete | ||
| Renesas | Obsolete | ||
| Analog Devices | Production | ||
| Renesas | Obsolete |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 566
|
$ | 0.6076 | 0.5043 | 0.4496 | |||||
| Verical |
US: 566
|
$ | 0.6304 | 0.562 | ||||||
