ISL8489IP - Renesas
R-PDIP-T14 Tube RS422RS485 EIA-422; EIA-485 interface receiver 70mV 19.17mm 2000ns 250kbps
Technical Details
| Case/Package | DIP |
| Data Rate | 250kbps |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height - Seated (Max) | 5.33mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2003-05-27 |
| Lead Free | Contains Lead |
| Length | 19.17mm |
| Lifecycle Status | Obsolete |
| Logic Function | Transceiver |
| Low Level Output Current | 4mA |
| Max Operating Temperature | 85°C |
| Max Supply Current | 250µA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Nominal Supply Current | 250µA |
| Number of Circuits | 1 |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Number of Terminals | 14 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 5V |
| Propagation Delay | 2µs |
| REACH SVHC | No |
| RoHS | Non-Compliant |
| Temperature Grade | Industrial |
| Terminal Pitch | 2.54mm |
| Width | 7.62mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

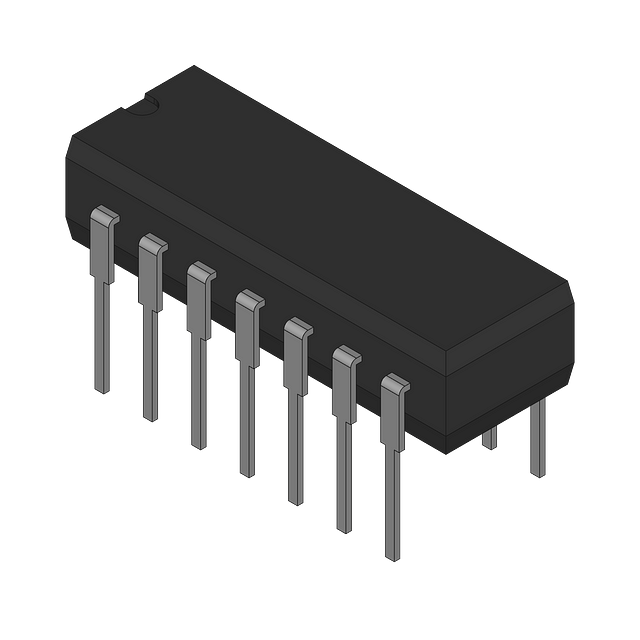

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Renesas | Obsolete | ||
| Renesas | Obsolete | ||
| Renesas | Obsolete | ||
| Renesas | Production | ||
| Renesas | Production | ||
| Renesas | Obsolete | ||
| Renesas | Obsolete | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Obsolete |
