Technical Details
| Case/Package | SOIC |
| Data Rate | 5Mbps |
| Export Control Classification Number (ECCN) Code | EAR99 |
| ESD Protection | Yes |
| Part Family | ISL8490 |
| Height | 0m |
| Height - Seated (Max) | 1.75mm |
| Harmonized Tariff Schedule (HTS) Code | 8540000000 |
| Introduction Date | 2003-05-27 |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Lifecycle Status | Production |
| Logic Function | Receiver, Transceiver |
| Low Level Output Current | 4mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Max Supply Current | 565µA |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 4.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| MSL | 3 |
| Mount | Surface Mount |
| Nominal Supply Current | 500µA |
| Number of Circuits | 1 |
| Number of Drivers | 1 |
| Number of Pins | 8 |
| Number of Receivers | 1 |
| Number of Terminals | 8 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 5V |
| Pitch | 1.3mm |
| Propagation Delay | 50ns |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Temperature Grade | Industrial |
| Terminal Pitch | 1.27mm |
| Width | 3.9mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

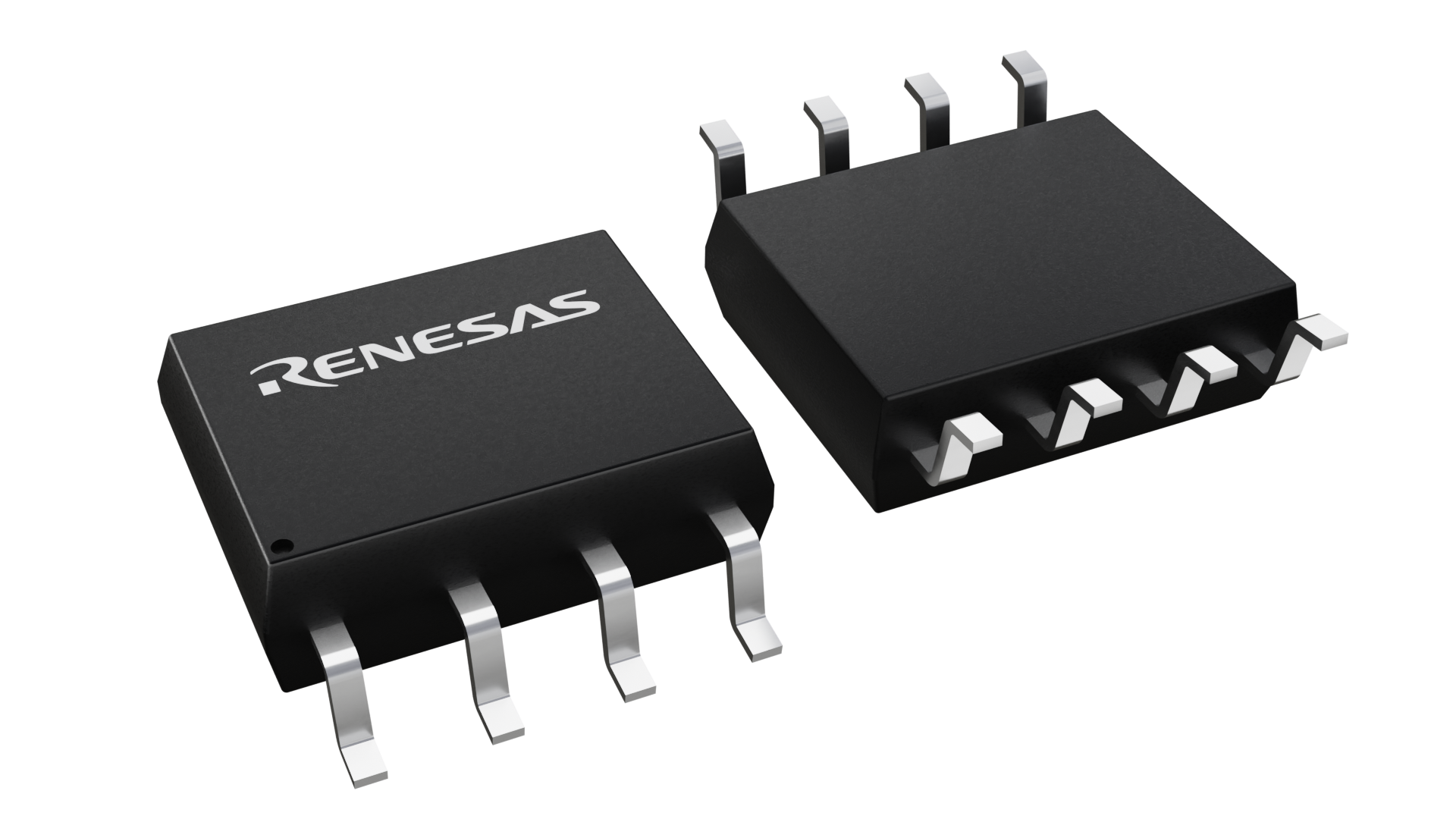

Images
Farnell
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Renesas | Obsolete | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Sipex | Obsolete | ||
| Analog Devices | Production | ||
| Renesas | Production | ||
| MaxLinear | Production |
