ISL9122AIRNZ-T7A - Renesas
Dc/Dc Conv, Buck-Boost, 2.5Mhz, 85Deg C Rohs Compliant: Yes |Renesas ISL9122AIRNZ-T7A
Technical Details
| Case/Package | DFN |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Part Family | ISL9122A |
| Height | 900µm |
| Height - Seated (Max) | 1mm |
| Harmonized Tariff Schedule (HTS) Code | 8540000000 |
| Length | 2mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 85°C |
| Max Output Current | 500mA |
| Max Output Voltage | 3.3V |
| Max Supply Voltage | 5.5V |
| Max Switching Frequency | 2.5MHz |
| Min Input Voltage | 1.8V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 1.8V |
| Min Supply Voltage | 1.8V |
| MSL | 1 |
| Mount | Surface Mount |
| Nominal Input Voltage | 3.6V |
| Nominal Output Voltage | 3.3V |
| Number of Circuits | 1 |
| Number of Pins | 8 |
| Number of Terminals | 8 |
| Output Voltage | 3.3V |
| Pitch | 500µm |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switching Frequency | 2.5MHz |
| Sync/Async | Asynchronous |
| Terminal Pitch | 500µm |
| Topology | Buck-Boost |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

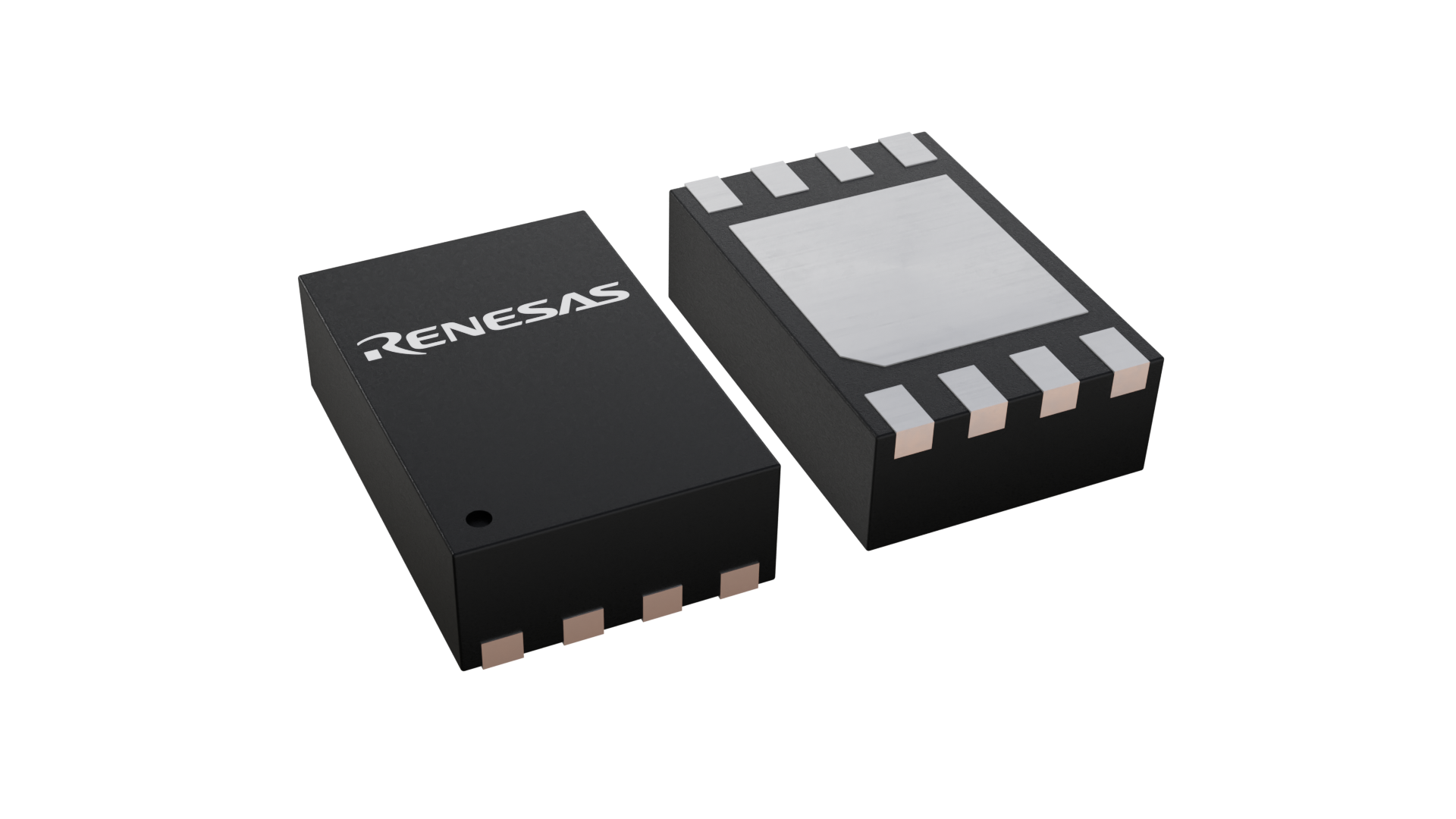

Images
