Technical Details
| Case/Package | SOP |
| China RoHS | Compliant |
| Collector Emitter Breakdown Voltage | 40V |
| Contact Plating | Tin Bismuth |
| Country of Origin | Japan, Taiwan |
| Current Transfer Ratio | 50% |
| Dark Current | 100nA |
| Part Family | PS2701-1 |
| Forward Current | 50mA |
| Forward Voltage | 1.4V |
| Height | 2.3mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.80.00 |
| Introduction Date | 1997-07-01 |
| Isolation Voltage | 3750Vrms |
| Lead Free | Lead Free |
| Lifecycle Status | NRND |
| Manufacturer Lifecycle Status | NOT RECOMMENDED FOR NEW DESIGNS |
| Max Operating Temperature | 100°C |
| Max Power Dissipation | 150mW |
| Min Operating Temperature | -55°C |
| MSL | 1 |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Pins | 4 |
| Output Voltage | 70V |
| REACH SVHC | Yes |
| Reverse Voltage | 6V |
| Rise Time | 5µs |
| RoHS | Compliant |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

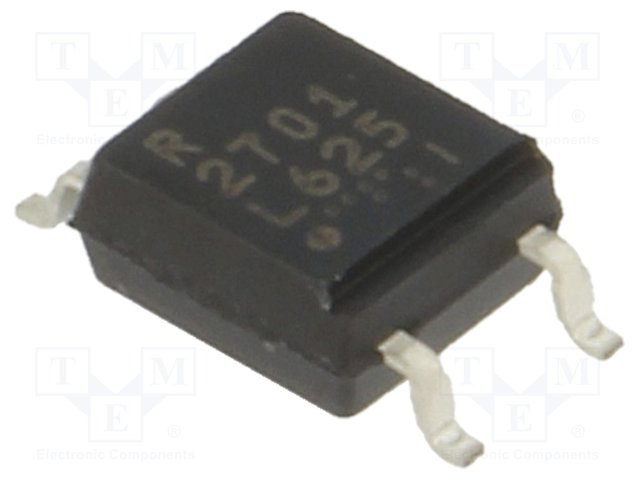

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| California Eastern Laboratories | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| Harris | Obsolete | ||
| Lite-On | Production | ||
| Toshiba | Obsolete | ||
| Motorola | Obsolete | ||
| Lite-On | Production | ||
| Lite-On | Production | ||
| California Eastern Laboratories | Obsolete |
