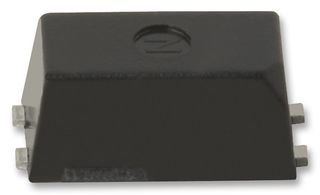

PS2911-1-F3-AX - Renesas
Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin Ultra Small Flat T/R
Technical Details
| Ambient Temperature Range High | 100°C |
| Case/Package | SOP |
| China RoHS | Compliant |
| Collector Emitter Breakdown Voltage | 40V |
| Collector Emitter Saturation Voltage | 300mV |
| Collector Emitter Voltage (VCEO) | 40V |
| Country of Origin | Japan |
| Current Transfer Ratio | 100% |
| Dark Current | 100nA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Part Family | PS2911-1 |
| Forward Current | 50mA |
| Forward Voltage | 1.3V |
| Height | 2.1mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.49.8000 |
| Input Current | 50mA |
| Introduction Date | 2013-05-24 |
| Isolation Voltage | 2500Vrms |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Collector Current | 40mA |
| Max Input Current | 500mA |
| Max Operating Temperature | 100°C |
| Max Power Dissipation | 120mW |
| Min Operating Temperature | -55°C |
| MSL | 1 |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 4 |
| Output Voltage | 40V |
| Packaging | Cut Tape |
| Power Dissipation | 160mW |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 6V |
| Reverse Voltage | 6V |
| RoHS | Compliant |
| Target Application | DC-DC converter\, Power supply\, PLC\, Modem\, Communication devices |
| Turn-Off Delay Time | 120µs |
| Turn-On Delay Time | 40µs |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
