2SCR523MT2L - ROHM
Bipolar Transistors - BJT NPN General Purpose Amplification Transistor
Technical Details
| Case/Package | SOT-723 |
| Collector Base Voltage (VCBO) | 50V |
| Collector Emitter Breakdown Voltage | 50V |
| Collector Emitter Saturation Voltage | 100mV |
| Collector Emitter Voltage (VCEO) | 50V |
| Contact Plating | Tin |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Gain Bandwidth Product | 350MHz |
| Height | 550µm |
| hFE Min | 120 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 50V |
| Max Collector Current | 100mA |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 100mW |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Tape & Reel (TR) |
| Polarity | NPN |
| Power Dissipation | 150mW |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Transition Frequency | 350MHz |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

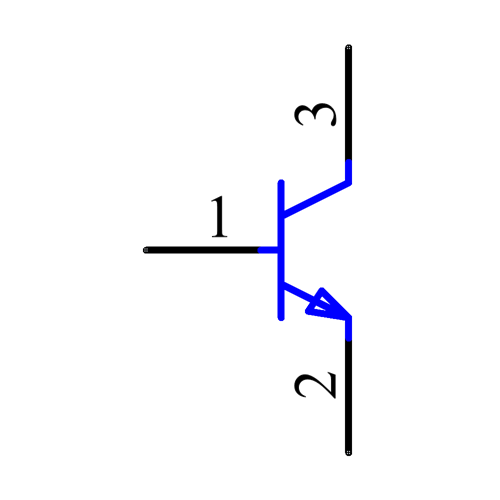

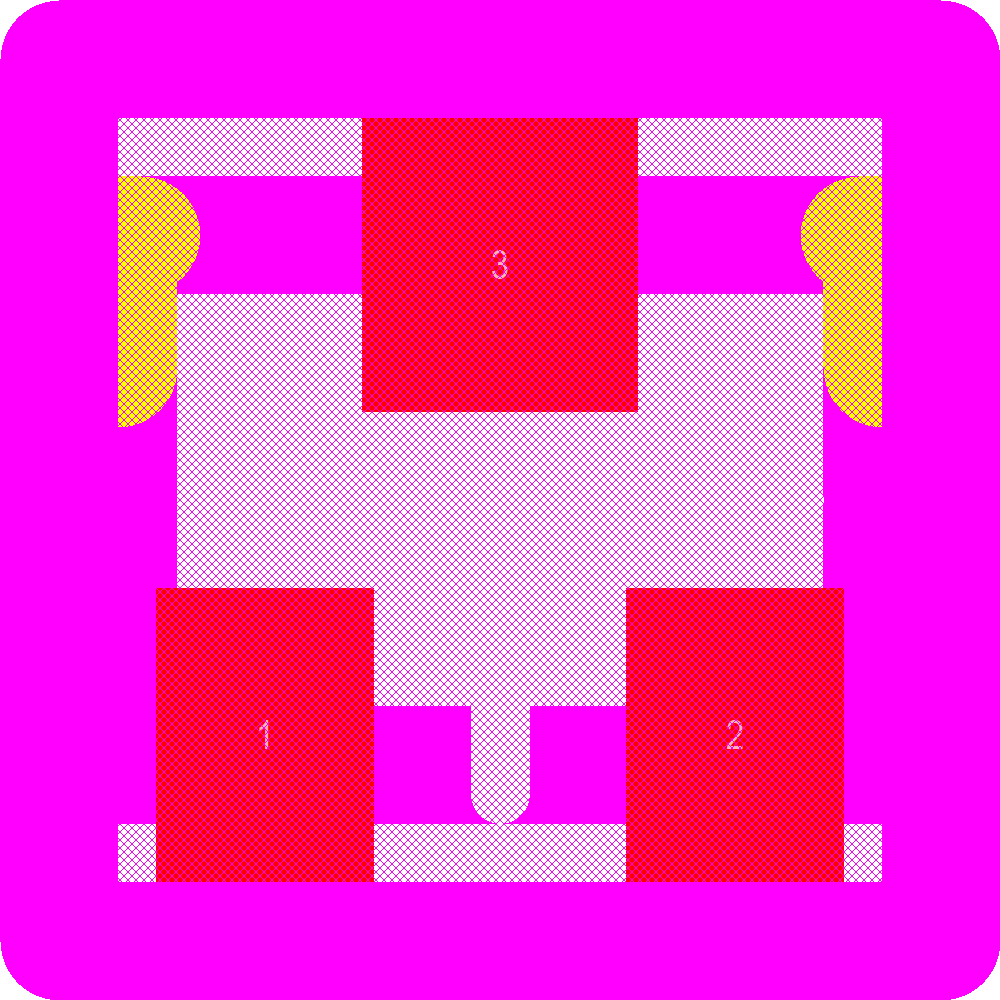

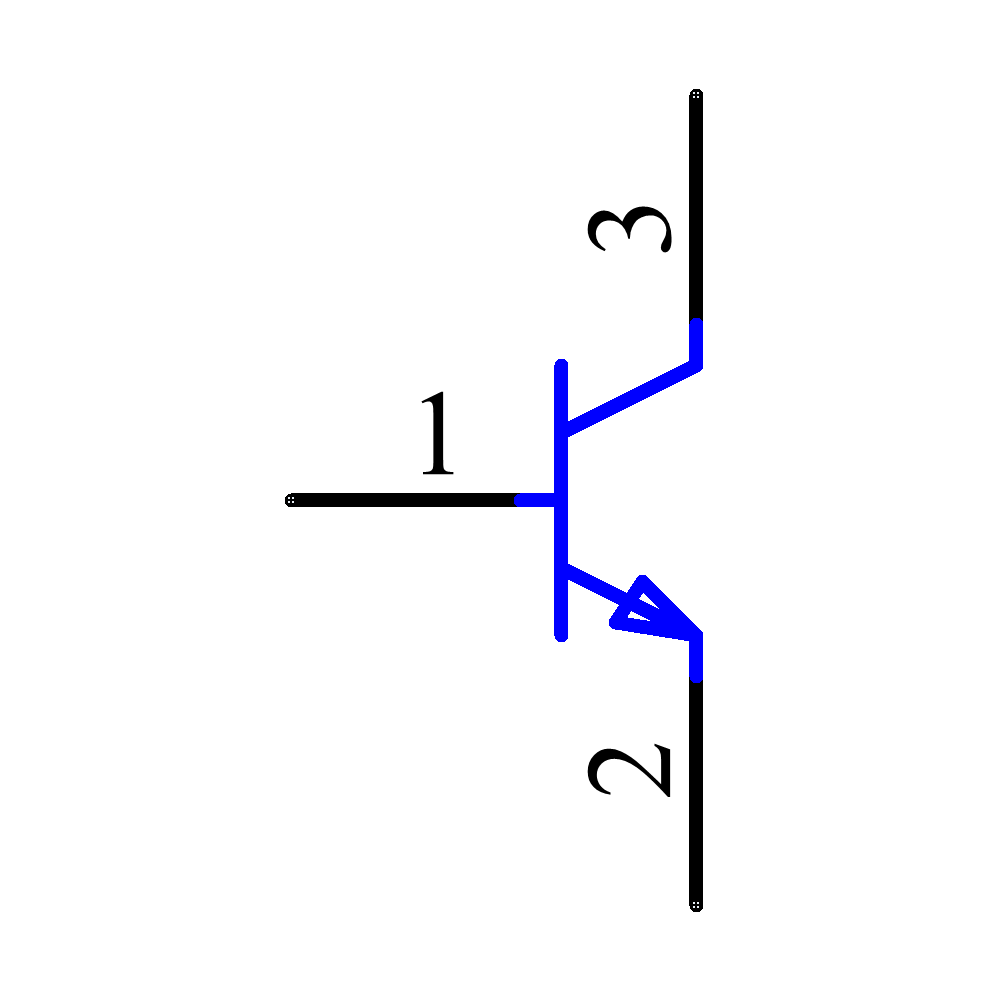

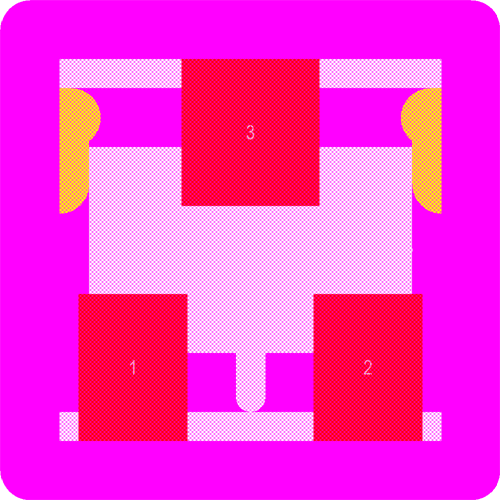

Images
Newark
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| ROHM | Production | ||
| ROHM | Production | ||
| onsemi | EOL | ||
| onsemi | Production | ||
| onsemi | Production | ||
| Taiwan Semiconductor | Obsolete | ||
| onsemi | EOL | ||
| onsemi | Production | ||
| Taiwan Semiconductor | Obsolete | ||
| Taiwan Semiconductor | Obsolete |
