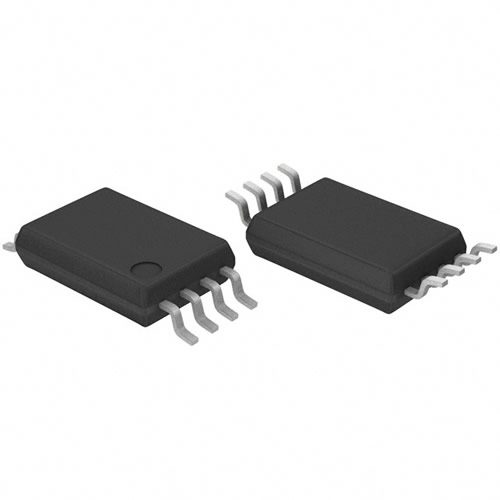

BR93L76RFV-WE2 - ROHM
EEPROM Serial-Microwire 8K-bit 512 x 16 2.5V/3.3V/5V 8-Pin SSOP-B Embossed Carrier T/R
Technical Details
| Access Time | 200ns |
| Case/Package | LSSOP |
| Country of Origin | Philippines |
| Density | 8kb |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Frequency | 2MHz |
| Height - Seated (Max) | 1.25mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.32.00.51 |
| Interface | Serial |
| Introduction Date | 2002-09-13 |
| Lead Free | Lead Free |
| Length | 4.4mm |
| Lifecycle Status | NRND |
| Max Frequency | 2MHz |
| Max Operating Temperature | 85°C |
| Max Supply Current | 1.5mA |
| Max Supply Voltage | 5.5V |
| Memory Size | 1kB |
| Memory Type | EEPROM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Nominal Supply Current | 4.5mA |
| Number of Circuits | 1 |
| Number of Pins | 8 |
| Number of Terminals | 8 |
| Operating Supply Voltage | 2.5V |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Industrial |
| Terminal Pitch | 650µm |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| ROHM | NRND | ||
| ROHM | NRND | ||
| STMicroelectronics | Obsolete | ||
| ROHM | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| STMicroelectronics | Obsolete | ||
| Microchip | Production |
