RTF016N05FRATL - ROHM
Power MOSFET, N Channel, 45 V, 1.6 A, 0.14 ohm, TUMT, Surface Mount
Technical Details
| China RoHS | Non-Compliant |
| Continuous Drain Current (ID) | 1.6A |
| Drain to Source Breakdown Voltage | 45V |
| Drain to Source Resistance | 140mΩ |
| Drain to Source Voltage (Vdss) | 45V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Gate to Source Voltage (Vgs) | 12V |
| Height | 850µm |
| Introduction Date | 2016-10-11 |
| Lifecycle Status | Production |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Terminals | 3 |
| Power Dissipation | 750mW |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Turn-Off Delay Time | 16ns |
| Turn-On Delay Time | 8ns |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

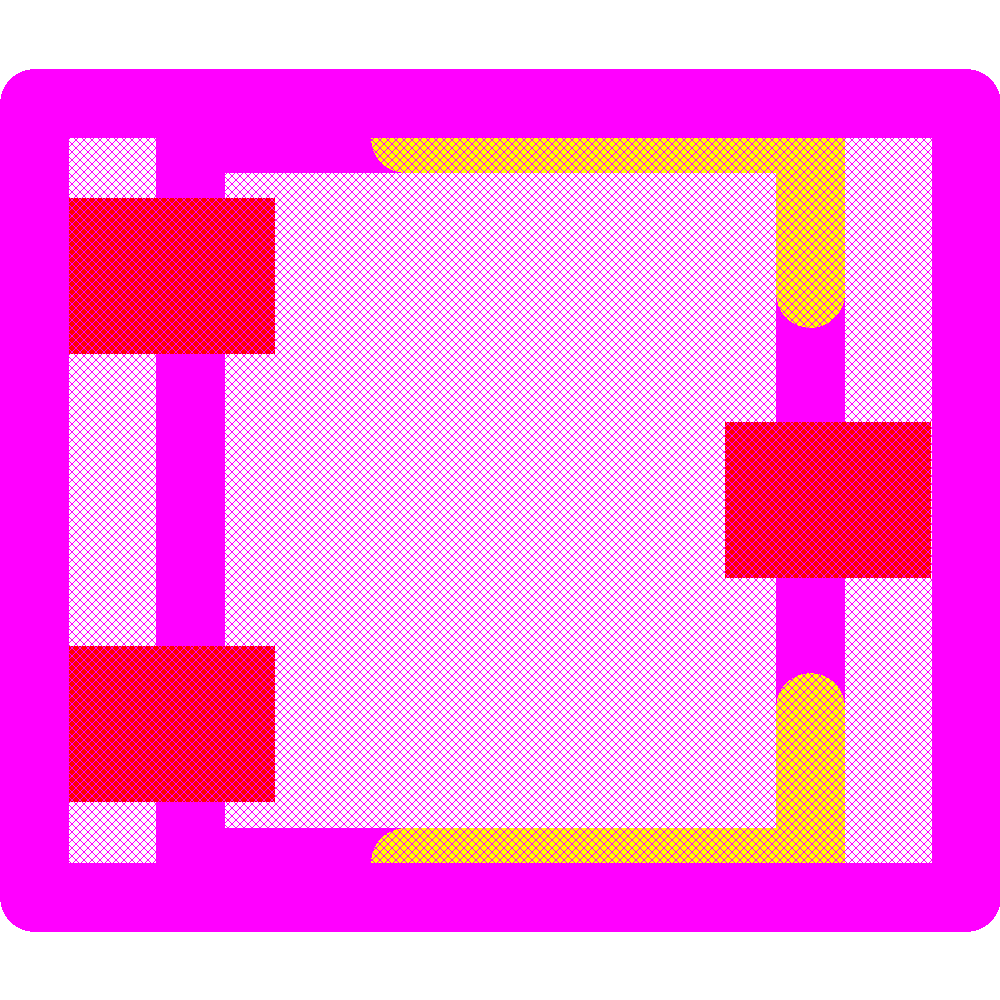

Images
