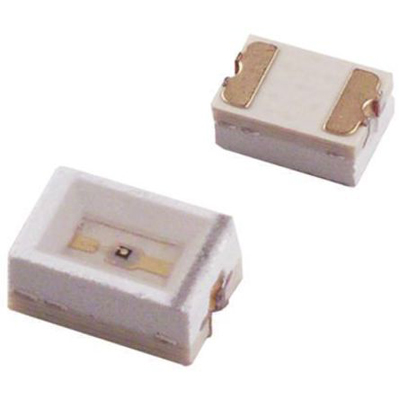

SML-010DTT86 - ROHM
SML-010 Series Orange 1208 110° Clear 10 mcd 2 V Chip LED with Reflector
Technical Details
| Case/Package | 1208 |
| Case Code (Imperial) | 1208 |
| Case Code (Metric) | 3020 |
| Color | Orange |
| Dominant Wavelength | 610nm |
| Forward Current | 25mA |
| Forward Voltage | 2V |
| Height | 1.3mm |
| Illumination Color | Orange |
| Lead Free | Lead Free |
| Length | 3mm |
| Lens Color | Clear, Colorless |
| Lens Style | Clear |
| Lens Transparency | Clear |
| Lifecycle Status | Production |
| Luminous Flux | 1Zlm |
| Luminous Intensity | 10mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Tape and Reel |
| Peak Wavelength | 610nm |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Voltage | 4V |
| RoHS | Compliant |
| Shape | Rectangular |
| Terminal Pitch | 2.95mm |
| Test Current | 20mA |
| Viewing Angle | 110° |
| Wavelength | 610nm |
| Width | 2mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
