Technical Details
| Case/Package | 0805 |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Color | Red |
| Country of Origin | Japan, Mainland China, Malaysia |
| Forward Current | 30mA |
| Forward Voltage | 1.75V |
| Height | 800µm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Illumination Color | Red |
| Introduction Date | 1995-04-01 |
| Lead Free | Lead Free |
| Length | 2mm |
| Lens Color | Clear, Colorless |
| Lens Style | Clear |
| Lens Transparency | Clear |
| Lifecycle Status | NRND |
| Luminous Intensity | 3.6mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Cut Tape |
| Peak Wavelength | 660nm |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Voltage | 4V |
| RoHS | Compliant |
| Shape | Rectangular |
| Terminal Pitch | 2.35mm |
| Test Current | 20mA |
| Viewing Angle | 140° |
| Wavelength | 660nm |
| Width | 1.25mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

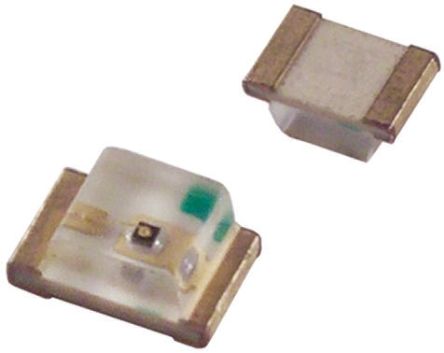

Images
Future Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Stanley Electric | Obsolete | ||
| Citizen Finetech Miyota | Unknown | ||
| Panasonic | Obsolete | ||
| ROHM | NRND | ||
| Stanley Electric | Obsolete | ||
| Toshiba | Obsolete | ||
| Agilent | Obsolete | ||
| Kingbright | Production | ||
| Lite-On | Production | ||
| Citizen Electronics | Obsolete |
