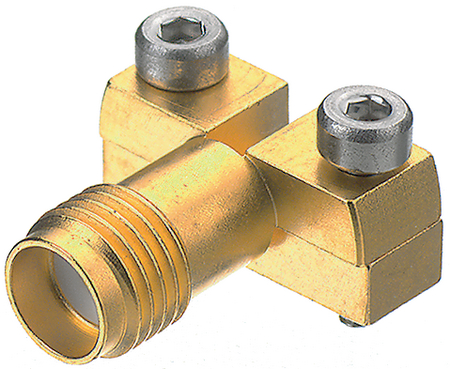

32K243-40ML5 - Rosenberger
Rf Coaxial Connector, 50 Ohm, In-series, Sma Right Angle Jack Pcb, Sma Series
Technical Details
| Ambient Temperature Range High | 165°C |
| Case/Package | SMA |
| China RoHS | Non-Compliant |
| Contact Gender | Female |
| Contact Material | Gold |
| Contact Plating | Gold |
| Contact Resistance | 3mΩ |
| Dielectric Material | PTFE |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Frequency | 18GHz |
| Gender | Female |
| Harmonized Tariff Schedule (HTS) Code | 8536.69.40.10 |
| Impedance | 50Ω |
| Insertion Loss (dB) | 0.17dB |
| Insulation Resistance | 5GΩ |
| Introduction Date | 2007-04-18 |
| Lifecycle Status | Production |
| Max Operating Temperature | 165°C |
| Manufacturer Package Identifier | 32K243-40ML5 |
| Min Operating Temperature | -65°C |
| Number of Contacts | 1 |
| Number of Pins | 1 |
| Number of Ports | 1 |
| REACH SVHC | No |
| RoHS | Compliant |
| Voltage Rating | 480V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
