CES-104-01-S-D - Samtec

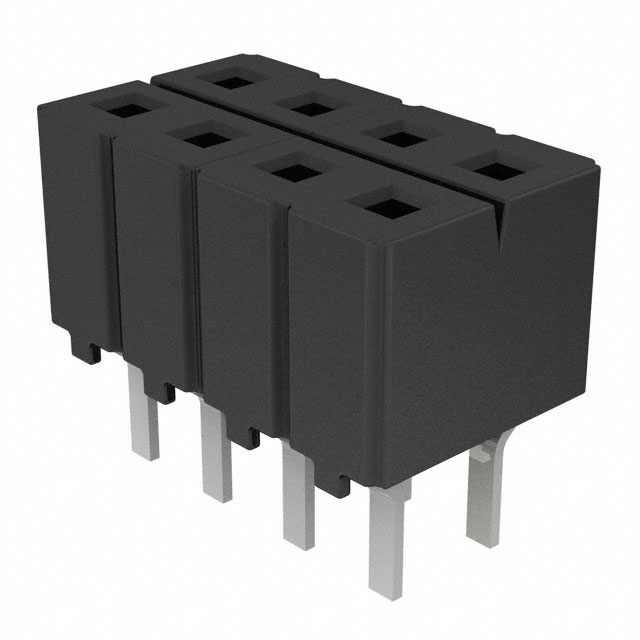

PCB Receptacle, Board-to-Board, 2.54 mm, 2 Rows, 8 Contacts, Through Hole Straight, CES
Technical Details
| Color | Black |
| Connector Type | Receptacle |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Resistance | 10mΩ |
| Depth | 5.59mm |
| Gender | Female |
| Housing Color | Black |
| Housing Material | Polyester |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Current Rating | 1A |
| Max Operating Temperature | 125°C |
| Max Voltage Rating (AC) | 333V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Orientation | Straight |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Row Spacing | 2.54mm |
| Termination | Solder |
| Width | 5.59mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
Images
JRH Electronics
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Verical |
US: 2398
|
$ | 2.08 | 1.70 | 1.44 | 1.28 | 0.975 | |||
| Quest |
US: 806
|
$ | 1.26 | 1.05 | 0.756 | 0.588 | 0.525 | 0.525 | ||
| Avnet Abacus |
EU: 0
|
$ | ||||||||
| Abacus Technologies |
US: 0
|
$ | ||||||||
