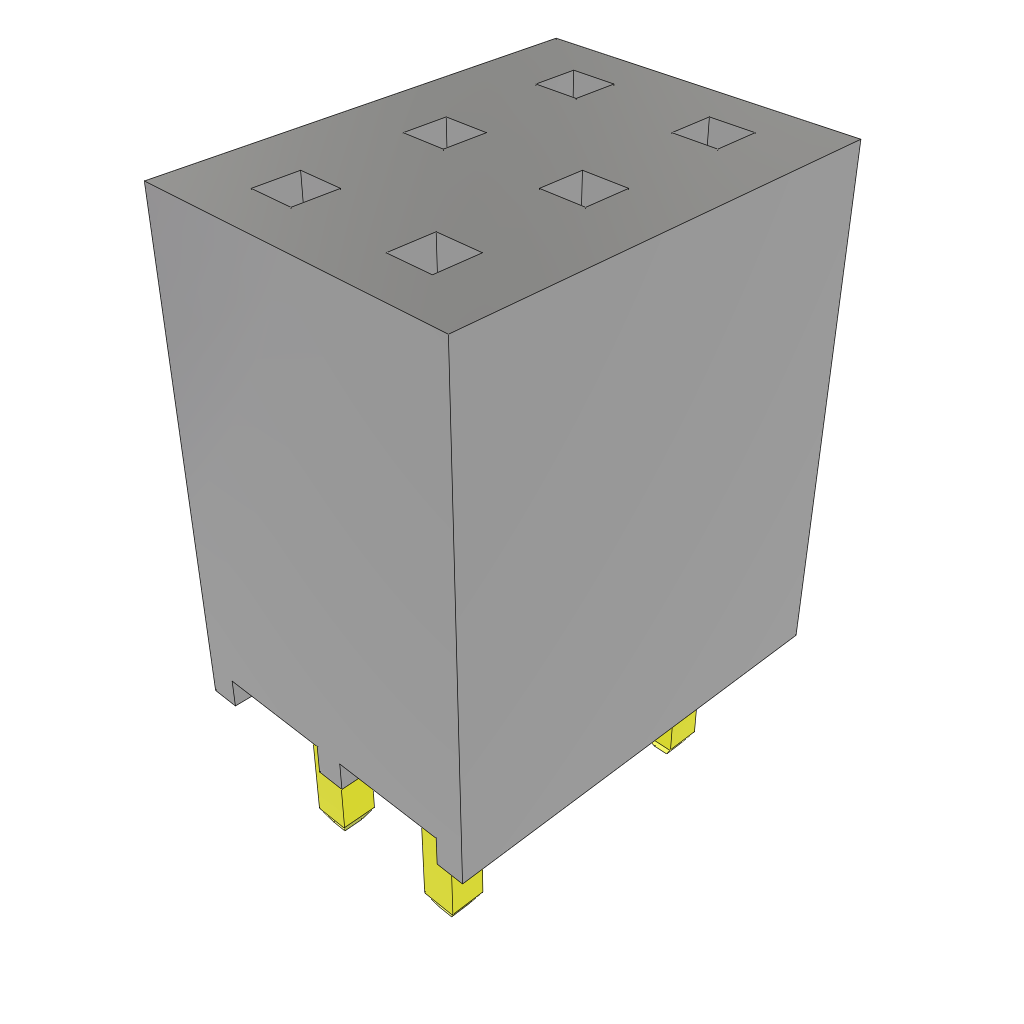

SSQ-102-01-G-Q - Samtec
Headers & Wire Housings Tiger Buy Socket Strip with Square Tails, 0.100 Pitch
Technical Details
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Resistance | 10mΩ |
| Depth | 7.49mm |
| Gender | Female |
| Housing Color | Black |
| Housing Material | Polymer |
| Lead Free | Lead Free |
| Lead Length | 2.64mm |
| Length | 5.59mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Current Rating | 7.6A |
| Max Operating Temperature | 125°C |
| Max Voltage Rating (AC) | 550V |
| Min Operating Temperature | -55°C |
| Number of Contacts | 4 |
| Number of Rows | 2 |
| Orientation | Straight |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Termination | Solder |
| Voltage Rating (AC) | 465V |
| Voltage Rating (DC) | 655V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
