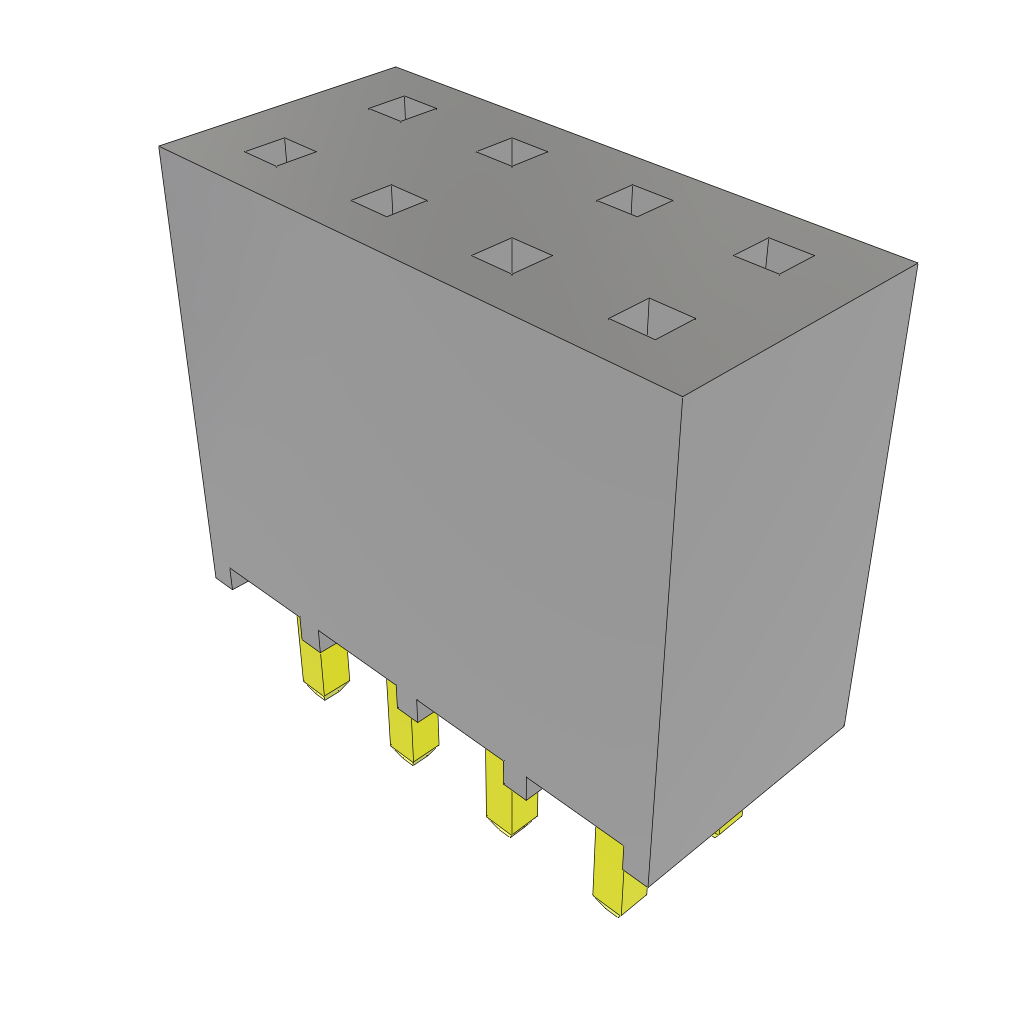

SSQ-104-01-G-D - Samtec
PCB Receptacle, Board-to-Board, 2.54 mm, 2 Rows, 8 Contacts, Through Hole Mount, SSQ
Technical Details
| Color | Black |
| Connector Type | Receptacle, Socket |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Resistance | 10mΩ |
| Current Rating | 7.6A |
| Depth | 4.95mm |
| Gender | Receptacle |
| Housing Color | Black |
| Lead Free | Lead Free |
| Lead Length | 2.64mm |
| Lead Pitch | 2.54mm |
| Length | 10.67mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Current Rating | 7.6A |
| Max Operating Temperature | 125°C |
| Max Voltage Rating (AC) | 550V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Orientation | Straight |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Row Spacing | 2.54mm |
| Termination | Solder |
| Voltage Rating | 550V |
| Voltage Rating (AC) | 550V |
| Voltage Rating (DC) | 655V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No
