SSW-102-02-G-D-RA - Samtec

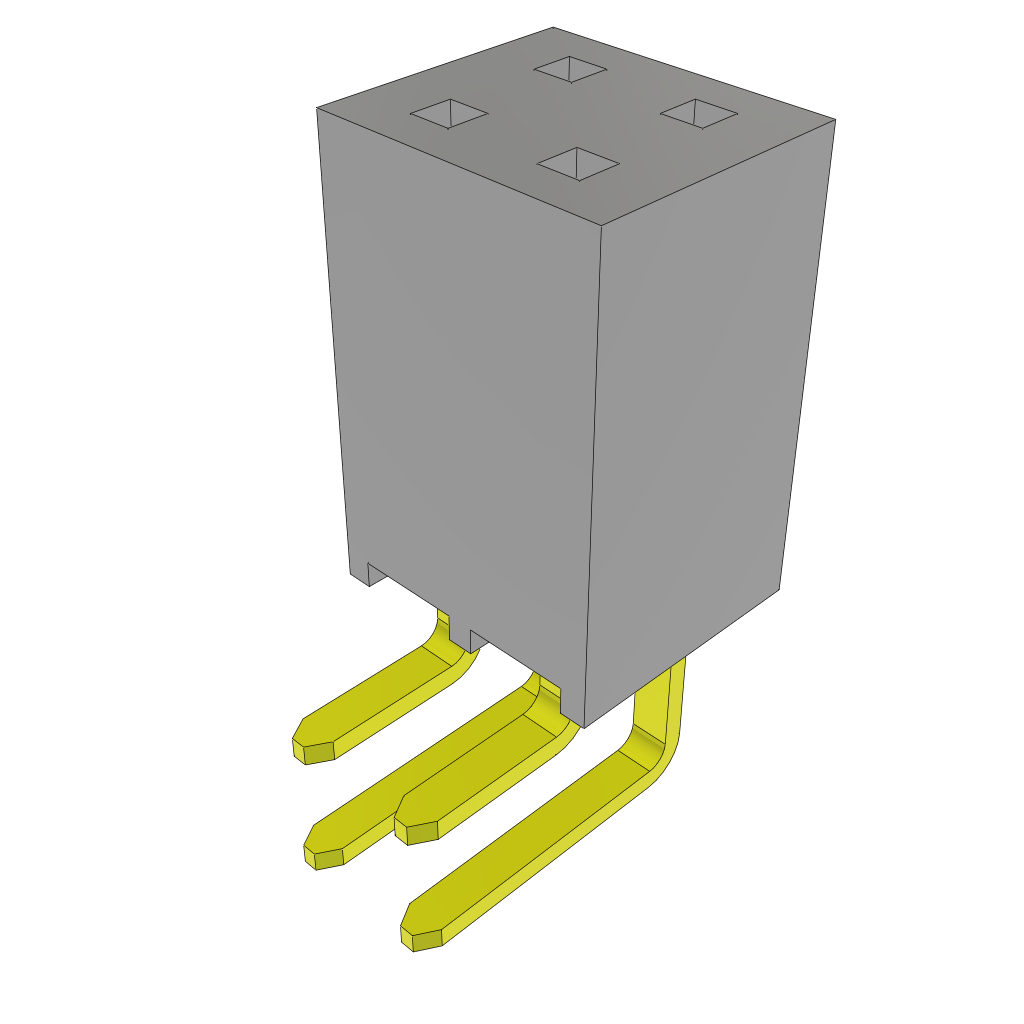

PCB Receptacle, Board-to-Board, 2.54 mm, 2 Rows, 4 Contacts, Through Hole Mount Right Angle
Technical Details
| Color | Black |
| Connector Type | Receptacle, Socket |
| Contact Material | Gold, Nickel |
| Contact Plating | Gold |
| Contact Resistance | 10mΩ |
| Current Rating | 4.7A |
| Depth | 12.57mm |
| Gender | Receptacle |
| Height | 5.08mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Lead Length | 2.54mm |
| Lead Pitch | 2.54mm |
| Length | 5.59mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Current Rating | 6.9A |
| Max Operating Temperature | 125°C |
| Max Voltage Rating (AC) | 550V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 4 |
| Number of Pins | 4 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Row Spacing | 2.54mm |
| Schedule B | 8536694040, 8536694040|8536694040|8536694040|8536694040|8536694040 |
| Termination | Solder |
| Voltage Rating | 655V |
| Voltage Rating (AC) | 465V |
| Voltage Rating (DC) | 655V |
| Width | 8.51mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No
Images

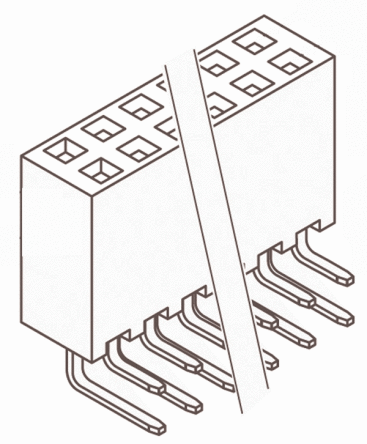

RS
