SSW-104-02-G-D - Samtec

PCB Receptacle, Board-to-Board, 2.54 mm, 2 Rows, 8 Contacts, Through Hole Mount, SSW Series

Technical Details

Color	Black
Connector Type	Receptacle, Socket
Contact Material	Bronze
Contact Plating	Gold
Contact Resistance	10mΩ
Depth	4.95mm
Housing Color	Black
Lead Free	Lead Free
Lead Pitch	2.54mm
Length	10.67mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	PRODUCTION
Max Current Rating	7.6A
Max Operating Temperature	125°C
Max Voltage Rating (AC)	550V
Min Operating Temperature	-55°C
Mount	Through Hole
Number of Contacts	8
Number of Positions	8
Number of Rows	2
Orientation	Vertical
Packaging	Bulk
Pitch	2.54mm
Radiation Hardening	No
RoHS	Compliant
Row Spacing	2.54mm
Termination	Solder
Voltage Rating (AC)	465V
Voltage Rating (DC)	655V
Width	4.95mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

Samtec SSW-104-02-G-D | Samtec

Samtec

Datasheets

Sager Electronics

Lifecycle Status Indicator

Production

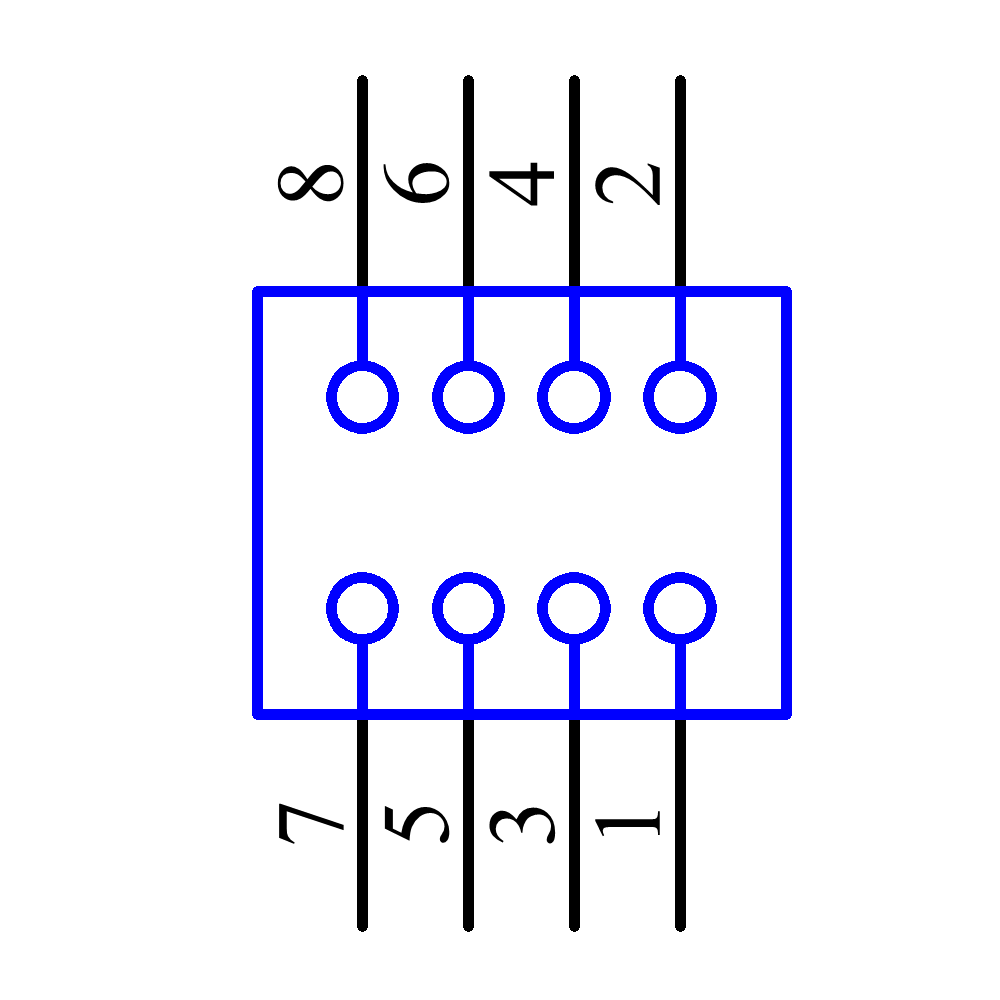

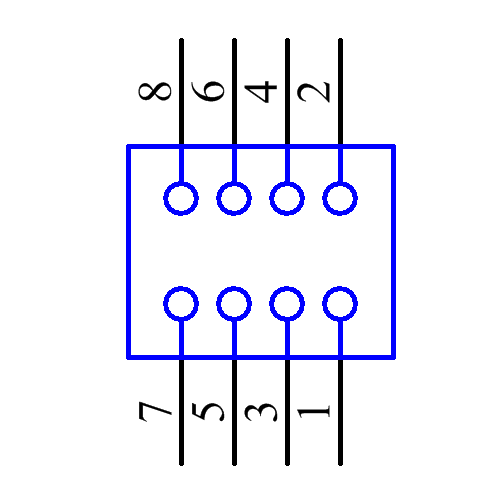

Symbol

SSW-104-02-G-D Symbol - Samtec

SSW-104-02-G-D Symbol - Samtec

SSW-104-02-G-D Symbol - Samtec

SSW-104-02-G-D Symbol - Samtec

‹ ›

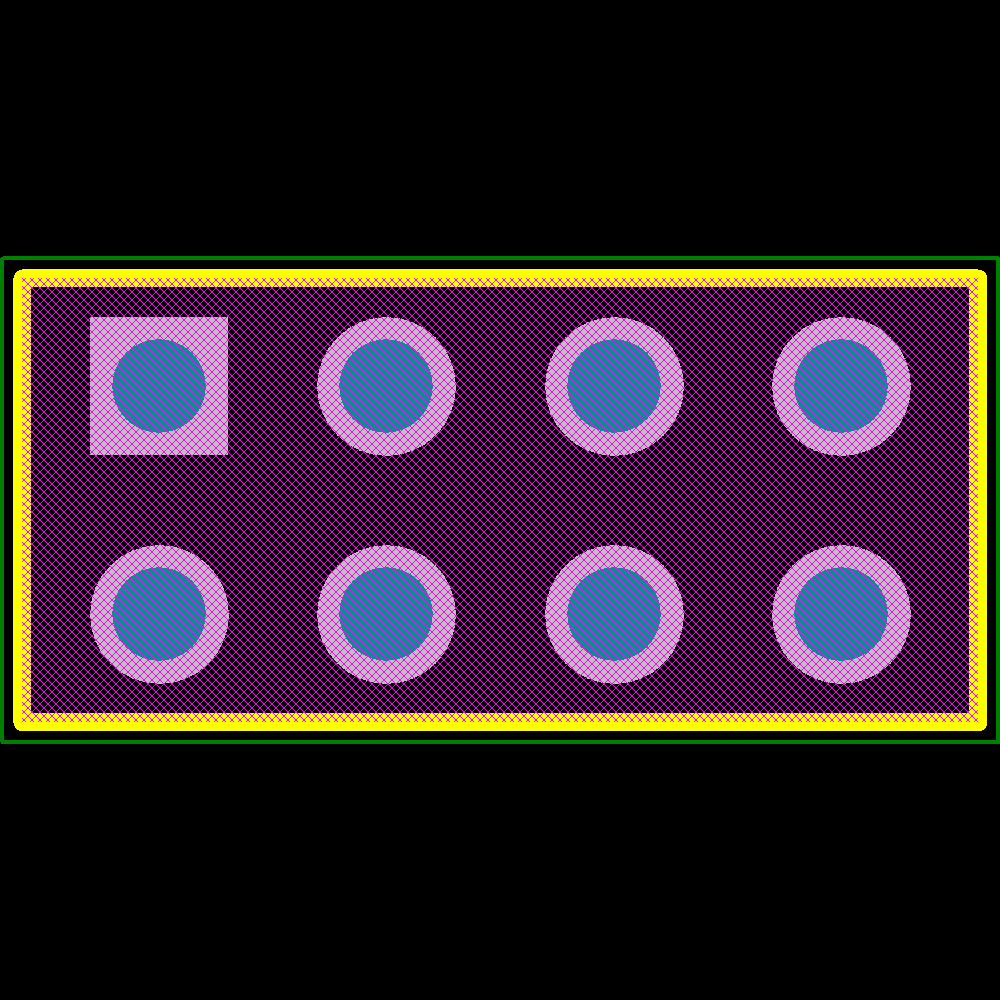

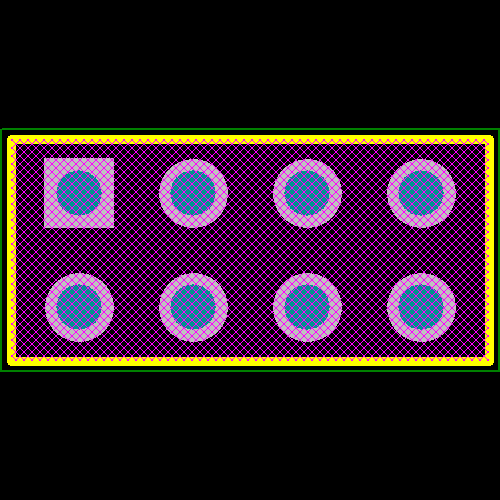

Footprint
