TLW-118-06-T-D - Samtec
Conn Unshrouded Header HDR 36 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk
Technical Details
| Color | Black |
| Connector Type | Male Pin |
| Contact Material | Bronze |
| Contact Mating Length | 2.667mm |
| Contact Plating | Tin |
| Gender | Male |
| Height | 1.52mm |
| Housing Color | Black |
| Housing Material | Plastic |
| Lead Free | Lead Free |
| Length | 45.7mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Mount | Through Hole |
| Number of Contacts | 36 |
| Number of Positions | 36 |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| RoHS | Compliant |
| Row Spacing | 2.54mm |
| Schedule B | 8536694040 |
| Termination | Solder |
| Width | 5.03mm |
Compliance
RoHS : Unconfirmed

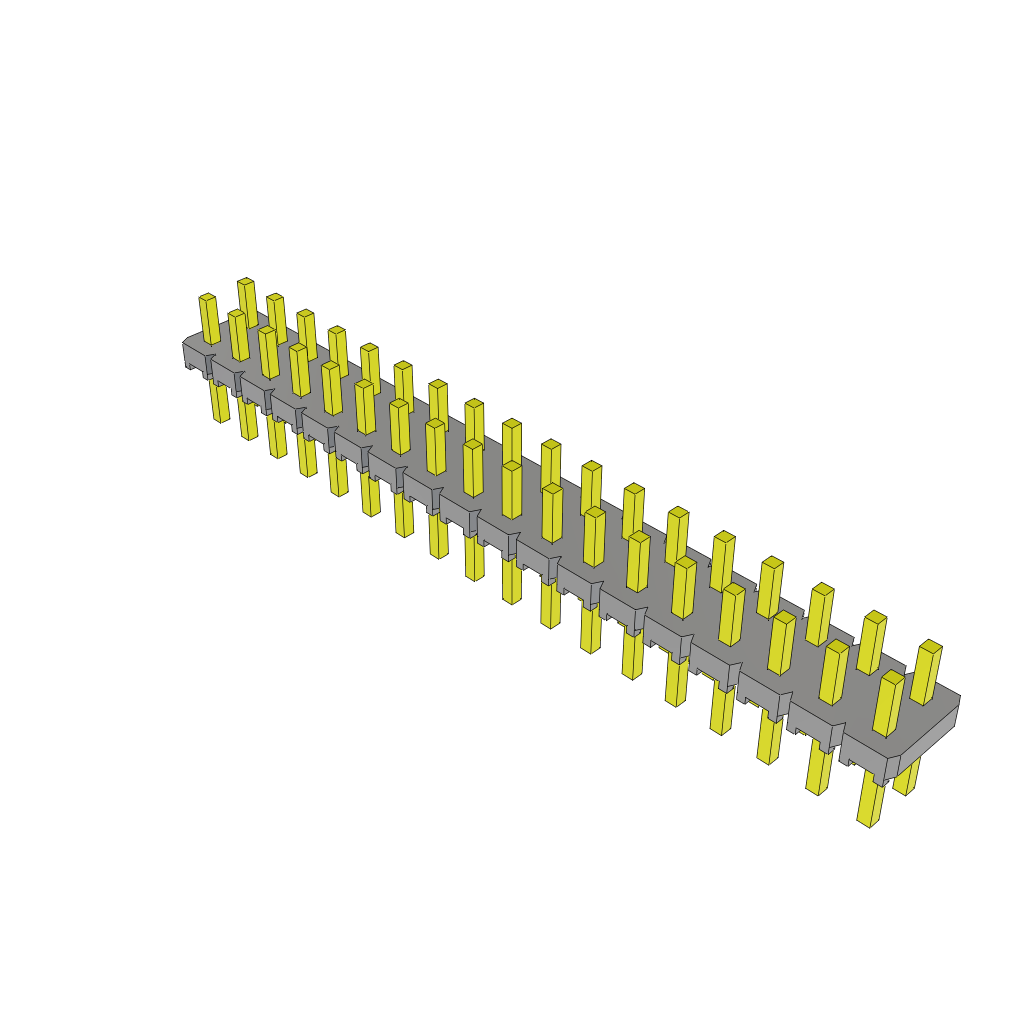

Images
Samtec
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Samtec | Production | ||
| Harwin | Obsolete | ||
| Samtec | Production | ||
| Samtec | Production | ||
| Harwin | Production | ||
| TE Connectivity / AMP | Unknown | ||
| Molex | Production | ||
| Sullins | Obsolete | ||
| TE Connectivity / AMP | Obsolete | ||
| 3M | Obsolete |
