TSM-104-03-T-DV-TR - Samtec

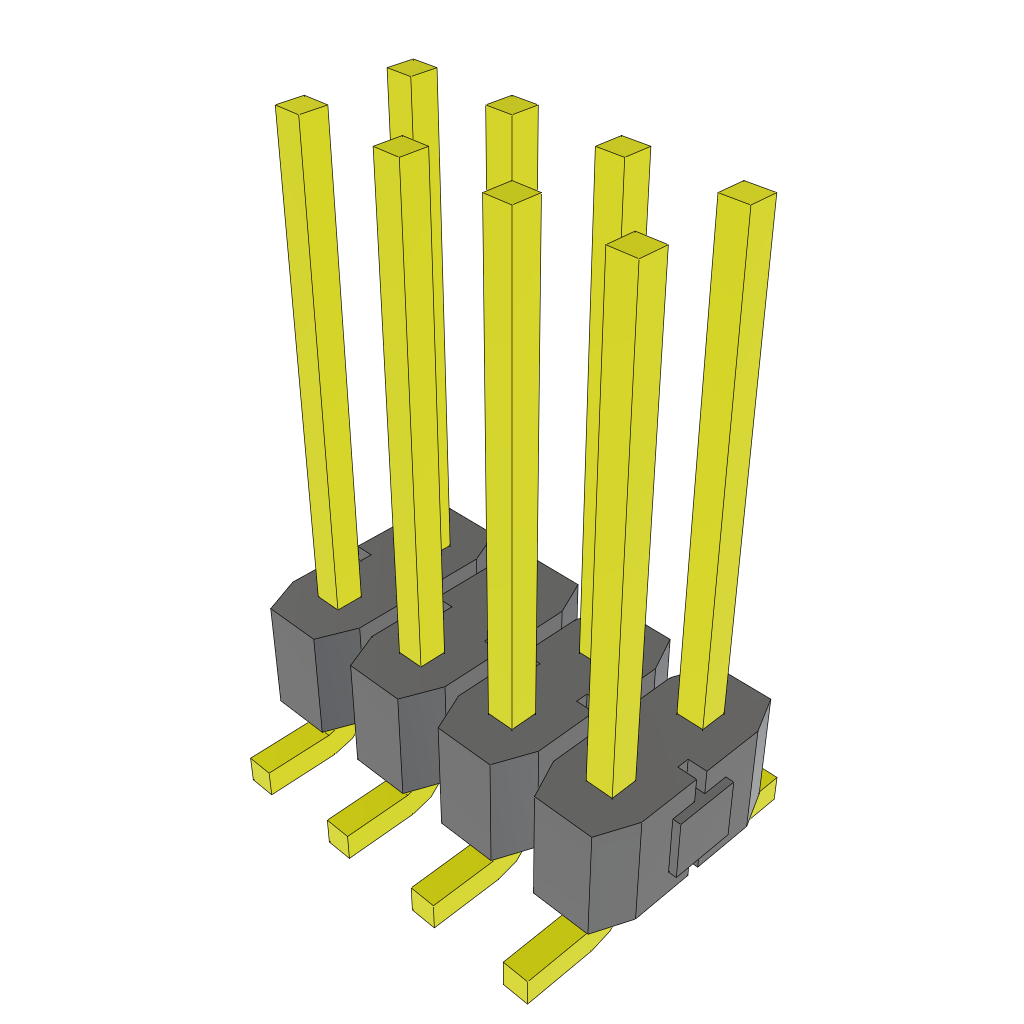

Pin Header, Board-to-Board, 2.54 mm, 2 Rows, 8 Contacts, Surface Mount, TSM Series

Contact Material	Bronze
Contact Plating	Tin
Depth	5.08mm
Gender	Male
Housing Color	Black
Housing Material	Polymer
Lead Free	Lead Free
Length	10.16mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	PRODUCTION
Max Current Rating	7A
Max Operating Temperature	105°C
Max Voltage Rating (AC)	475V
Min Operating Temperature	-55°C
Number of Contacts	8
Number of Rows	2
Orientation	Straight
Pitch	2.54mm
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Termination	Solder

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Samtec TSM-104-03-T-DV-TR | Samtec

Samtec

Production

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Samtec	TSM-104-04-T-DV	Production
Samtec	TSM-104-05-T-DV	Unknown
Samtec	TSM-104-05-T-DV-P	Production
Samtec	TSM-104-04-T-DV-TR	Production
Samtec	TSM-104-03-T-DV-P	Production
Samtec	TSM-104-02-T-DV-TR	Production
Samtec	TSM-104-04-T-DV-M	Unknown
Molex	15-42-7208	Obsolete
Samtec	TSM-104-03-T-DV	Production
Molex	15-29-7008	Obsolete
