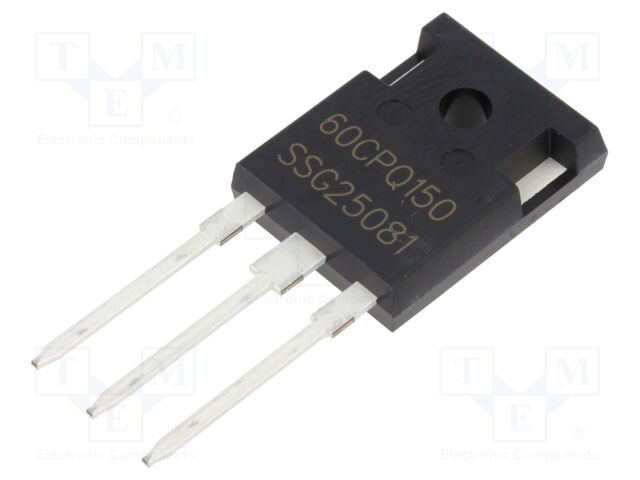

60CPQ150 - Sangdest Microelectronics
Rectifier Diode, Schottky, 1 Phase, 150V V(RRM), Silicon, TO-247AD
Technical Details
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Forward Voltage | 830mV |
| Introduction Date | 2012-12-29 |
| Lifecycle Status | Production |
| Max Forward Surge Current (Ifsm) | 510A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Number of Terminals | 3 |
| Peak Reverse Current | 100µA |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 150V |
| RoHS | Compliant |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images
TME
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| DigiKey |
DE: 3145
|
$ | 4.9926 | 4.9926 | 2.86 | 4.9926 | 1.8085 | 1.7949 | ||
| TME |
PL: 184
|
$ | 3.0572 | 2.749 | 2.4408 | 2.4408 | 2.4408 | 2.4408 | ||
