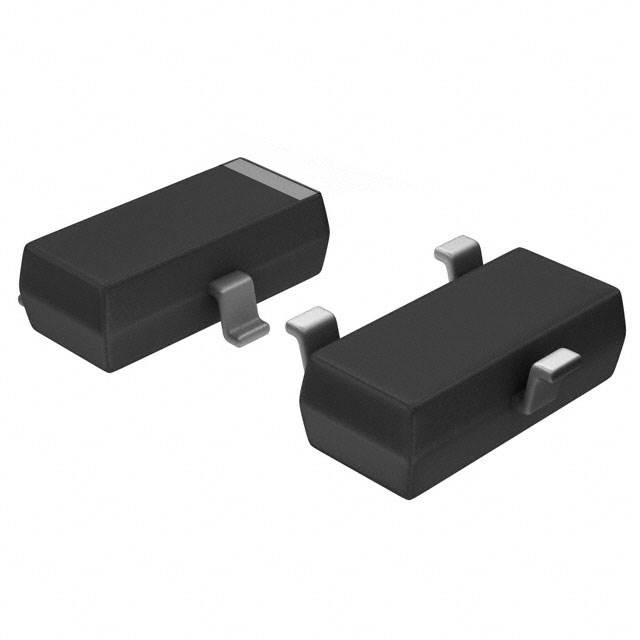

BAV99 - Sangdest Microelectronics
Rectifier Diode, 1 Phase, 2 Element, 0.2A, 85V V(RRM), Silicon
Technical Details
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Forward Voltage | 1.25V |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.70 |
| Introduction Date | 2003-01-16 |
| Lifecycle Status | Production |
| Max Forward Surge Current (Ifsm) | 2A |
| Max Operating Temperature | 150°C |
| Max Output Current | 150mA |
| Max Power Dissipation | 225mW |
| Min Breakdown Voltage | 85V |
| Min Operating Temperature | -55°C |
| Number of Elements | 2 |
| Number of Terminals | 3 |
| Peak Reverse Current | 2.5µA |
| REACH SVHC | Yes |
| Reverse Recovery Time | 6ns |
| Reverse Standoff Voltage | 75V |
| RoHS | Compliant |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Bettlink |
HK: 94210
|
$ | 0.0592 | 0.0438 | 0.0438 | 0.0381 | 0.0356 | 0.032 | ||
| XingHuan International |
CN: 80000
|
$ | ||||||||
