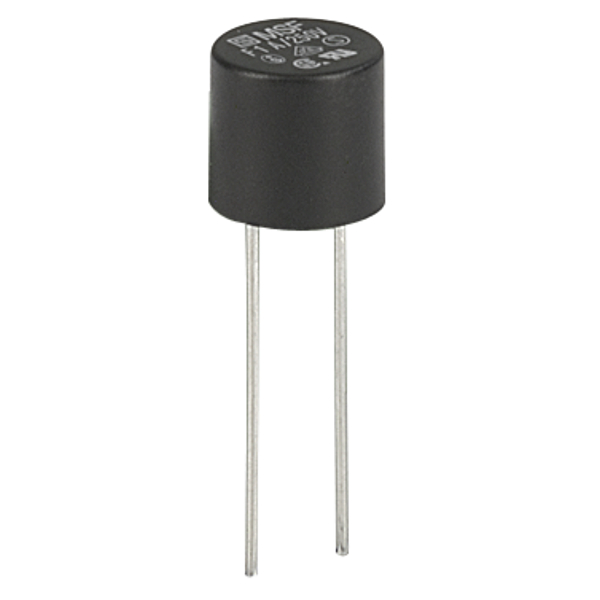

0034.6071 - Schurter
Fuse, PCB Leaded, 500 mA, 250 VAC, MSF 250, Fast Acting, Radial Leaded
Technical Details
| Body Material | Thermoplastic |
| Case/Package | Radial |
| China RoHS | Compliant |
| Contact Material | Copper |
| Contact Plating | Tin |
| Current Rating | 500mA |
| Diameter | 8.5mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Flammability Rating | UL94 V-0 |
| Height | 8.5mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.10.00.40 |
| Introduction Date | 2003-11-14 |
| Lead Free | Lead Free |
| Length | 8.5mm |
| Lifecycle Status | EOL |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250V |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Pins | 2 |
| Packaging | Bulk |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Termination | Radial |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| Voltage Rating (DC) | 250V |
| Weight | 500.000539mg |
| Wire/Cable Diameter | 640µm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
