Electromechanical  >  Switches  >  Pushbutton Switches

Schurter - 0041.9141.3107

0041.9141.3107 - Schurter

SCHURTER 0041.9141.3107 Pushbutton Switch, SPST-NO, Off-(On), 60 V, 50 V, 200 mA, Solder

 Datasheets

Technical Details

Actuator Material Polycarbonate
Color Red
Contact Current Rating 200mA
Contact Material Brass
Contact Plating Silver
Contact Resistance 25mΩ
Contact Voltage Rating (AC) 60V
Current Rating 200mA
Depth 10mm
Export Control Classification Number (ECCN) Code EAR99
Electrical Life 100kcycles
Height 8.7mm
Harmonized Tariff Schedule (HTS) Code 8536.50.90.31
Insulation Resistance 10GΩ
Introduction Date 2007-07-10
Length 10mm
Life (Cycles) 100kcycles
Lifecycle Status Production
Max Current Rating 200mA
Max Operating Temperature 85°C
Max Voltage Rating (AC) 60V
Max Voltage Rating (DC) 50V
Mechanical Life 10kcycles
Min Operating Temperature -25°C
Mount Through Hole
Number of Positions 2
Operating Force 1.8N
Radiation Hardening No
Ratings IP40
REACH SVHC Yes
RoHS Compliant
Sealable IP40
Switch Function Off-Mom
Terminal Material Brass
Termination PC Pin
Throw Configuration SPST
Voltage Rating (AC) 48V
Voltage Rating (DC) 48V
Weight 2.000002g

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

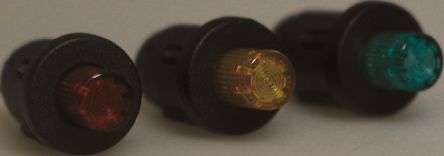

Schurter 0041.9141.3107 | RS

RS

Datasheets

 Master Electronics
 RS
 RS

Lifecycle Status Indicator

   Production

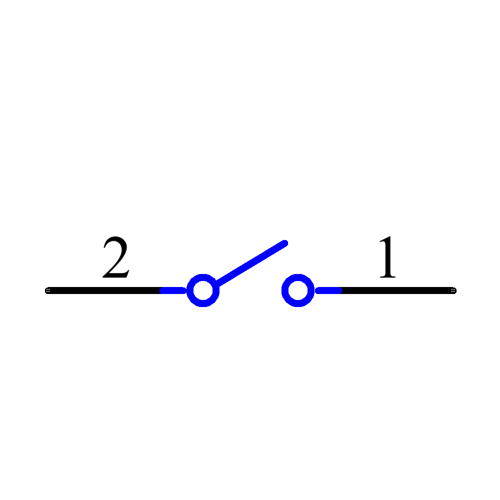

Symbol

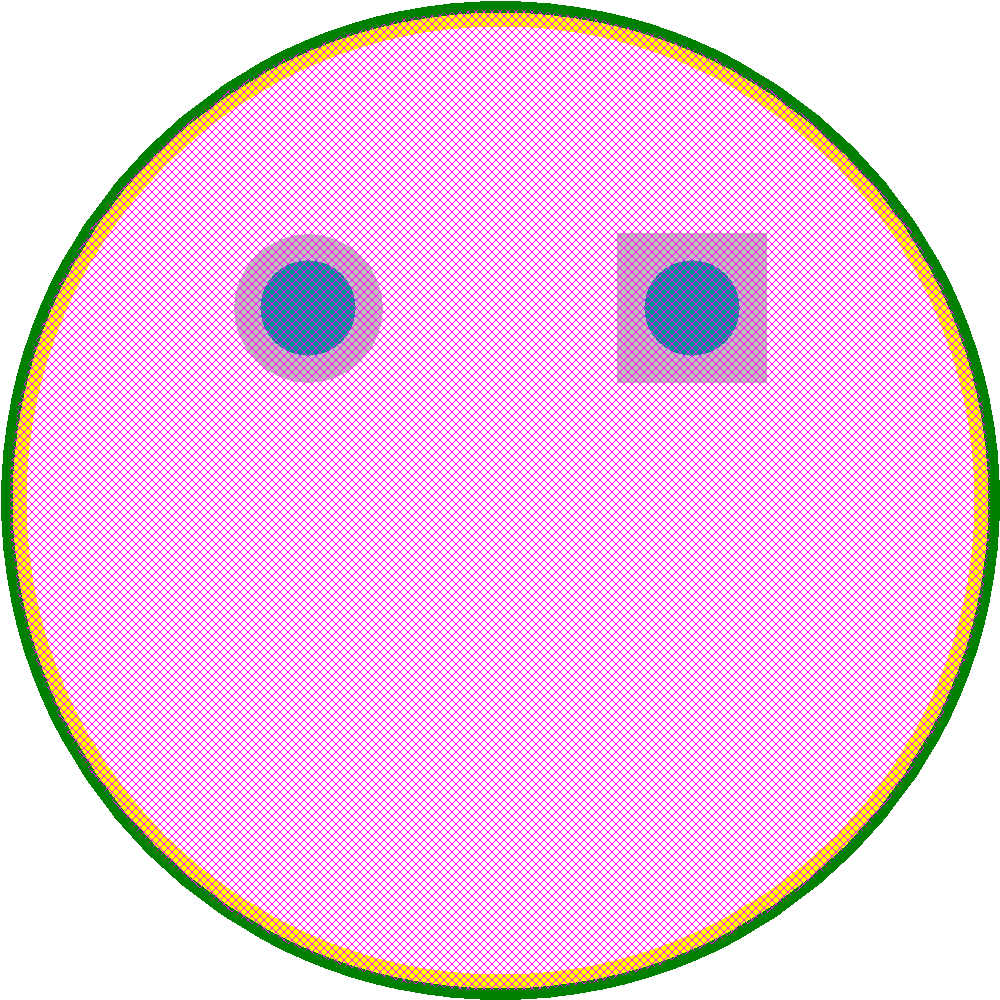

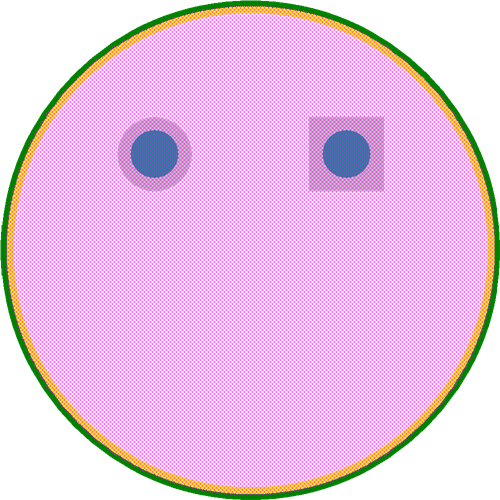

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Schurter
0041.9141.5107
Production
Schurter
0041.9151.3107
Production
Schurter
0041.9151.7107
Production
Schurter
0041.9141.7107
Production
Schurter
0041.9151.5307
Production
Schurter
0041.9141.3307
Production
Schurter
0041.9141.7307
Production
Schurter
0041.9142.3107
Production
Schurter
0041.9142.3307
Production
Schurter
0041.9142.5307
Production

See more alternatives See less alternatives
