1241.1102.7093 - Schurter
Keypad Switch, 1 Switches, SPST, Momentary, 0.08A, 24VDC, 4N, Solder Terminal, Panel Mount
Technical Details
| Contact Current Rating | 80mA |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Resistance | 50mΩ |
| Current Rating | 80mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 1Mcycles |
| Height | 12mm |
| Housing Material | Polysulfone |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.40 |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2006-11-08 |
| Length | 18mm |
| Lifecycle Status | Production |
| Max Current Rating | 80mA |
| Max Operating Temperature | 60°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 1Mcycles |
| Min Operating Temperature | -25°C |
| Mount | Panel, Snap-In |
| Number of Positions | 1 |
| Operating Force | 4N |
| Radiation Hardening | No |
| Ratings | Dust Tight, IP65, Water Resistant |
| RoHS | Compliant |
| Sealable | IP65 |
| Switch Function | Off-Mom |
| Termination | Solder |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 24V |
| Weight | 1.700008g |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

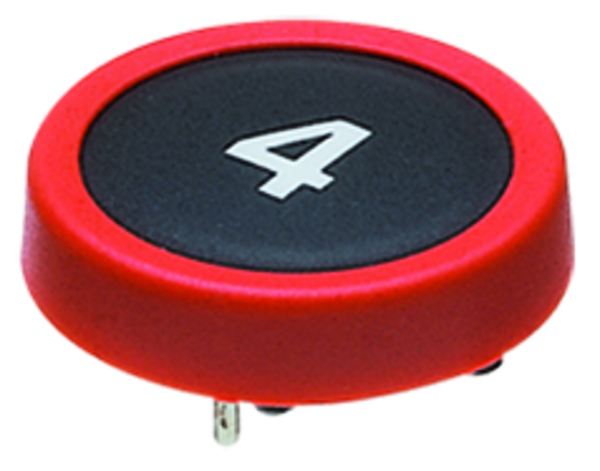

Images
