Schurter - 1241.1113.7098

1241.1113.7098 - Schurter

Keypad Switch, 1 Switches, SPST, Momentary, 0.125A, 48VDC, 4N, Solder Terminal, Panel Mount

 Datasheets

Technical Details

Ambient Temperature Range High 60°C
Color White
Contact Current Rating 125mA
Contact Material Brass
Contact Plating Silver, Tin
Contact Resistance 50mΩ
Contact Voltage Rating (DC) 48V
Current Rating 125mA
Depth 18mm
Export Control Classification Number (ECCN) Code EAR99
Electrical Life 1Mcycles
Height 12mm
Housing Material Polysulfone
Harmonized Tariff Schedule (HTS) Code 8536.50.90.40
Illumination Type Illuminated
Insulation Resistance 100MΩ
Introduction Date 2006-11-08
Length 18mm
Life (Cycles) 1Mcycles
Lifecycle Status Production
Max Current Rating 125mA
Max Operating Temperature 60°C
Max Voltage Rating (DC) 48V
Mechanical Life 1Mcycles
Min Operating Temperature -25°C
Mount Panel, Screw, Snap-In
Number of Positions 1
Operating Force 4N
Orientation Straight
Ratings Dust Tight, IP65, Water Resistant
REACH SVHC No
RoHS Compliant
Sealable IP65
Switch Function Off-Mom
Termination Solder
Throw Configuration SPST
Voltage Rating 48V
Voltage Rating (DC) 48V
Weight 1.59999g

Compliance

   RoHS : Unconfirmed
   REACH SVHC : No

Images

Schurter 1241.1113.7098 | Sager Electronics

Sager Electronics

Datasheets

 RS
 DigiKey
 Mouser

Lifecycle Status Indicator

   Production
Symbol

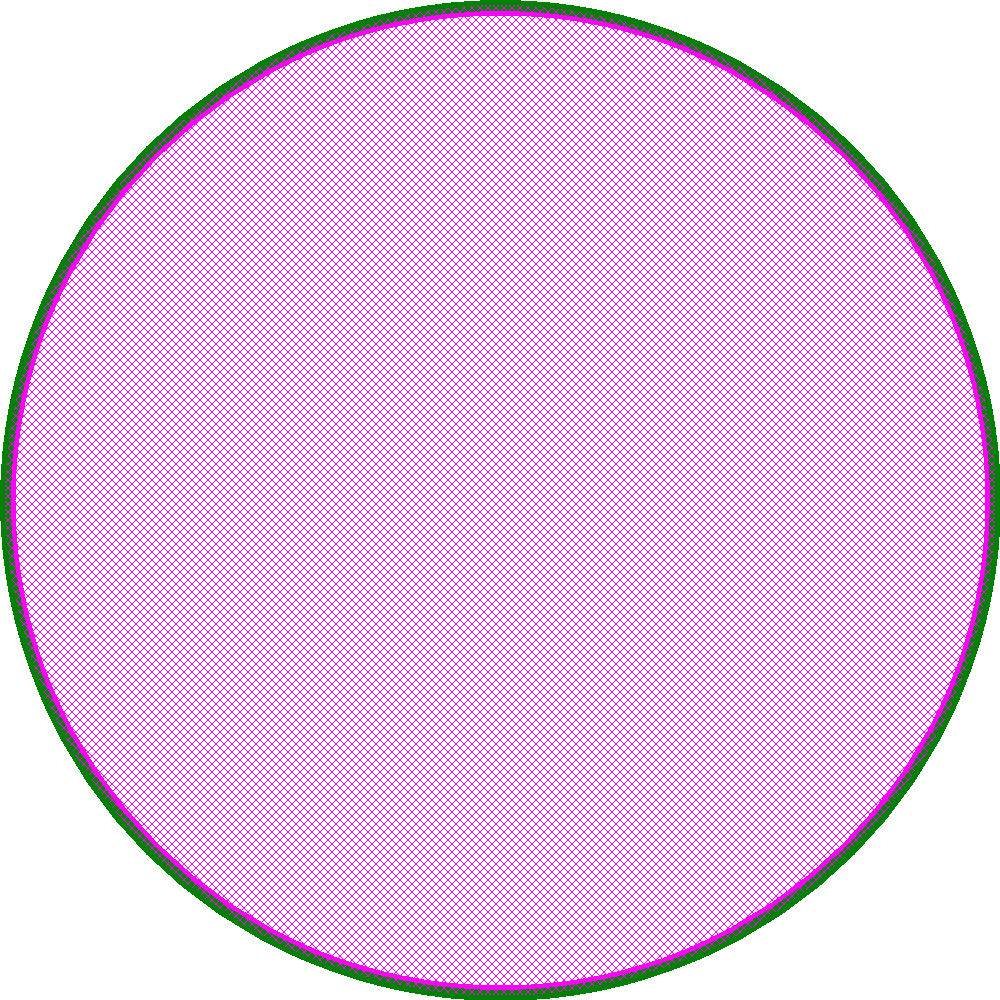

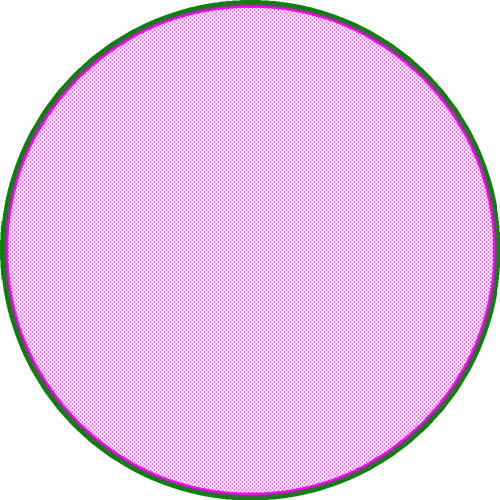

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Schurter
1241.1082.1
Production
Schurter
1241.1100.7095
Production
Schurter
1241.1111.7097
Obsolete
Schurter
1241.1100.7096
Production
Schurter
1241.1082.3
Production
Schurter
1241.1072
Production
Schurter
1241.1082.61
Production
Schurter
1241.1082.6
Production
Schurter
1241.1082.5
Production
Schurter
1241.1082.11
Production

See more alternatives See less alternatives
