1241.1600.11 - Schurter

Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 30VAC 42VDC 0.12VA >1000000Cycles 1.8N SMD Box

Actuator Length	1.0414mm
Actuator Material	Polyamide
China RoHS	Compliant
Contact Current Rating	50mA
Contact Material	Brass
Contact Plating	Tin
Contact Resistance	50mΩ
Contact Voltage Rating (AC)	30V
Current Rating	50mA
Depth	15.9mm
Dielectric Material	Polyamide
Export Control Classification Number (ECCN) Code	EAR99
Electrical Life	1Mcycles
Flammability Rating	UL94 V-0
Height	3.65mm
Harmonized Tariff Schedule (HTS) Code	8536.50.90.40
Illumination Type	Illuminated, Non-Illuminated
Insulation Resistance	100MΩ
Introduction Date	2002-01-29
Length	11.4mm
Life (Cycles)	1Mcycles
Lifecycle Status	Production
Max Current Rating	50mA
Max Operating Temperature	85°C
Max Voltage Rating (AC)	30V
Max Voltage Rating (DC)	42V
Mechanical Life	1Mcycles
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Positions	1
Operating Force	2.2N
Orientation	Straight
Packaging	Box
Radiation Hardening	No
Ratings	IP40
REACH SVHC	Yes
RoHS	Compliant
Sealable	IP40
Switch Function	Off-Mom
Switch Travel	350µm
Terminal Material	Brass
Termination	Gull Wing
Throw Configuration	SPST
Voltage Rating (AC)	30V
Voltage Rating (DC)	42V
Weight	1.700008g
Width	15.9mm

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

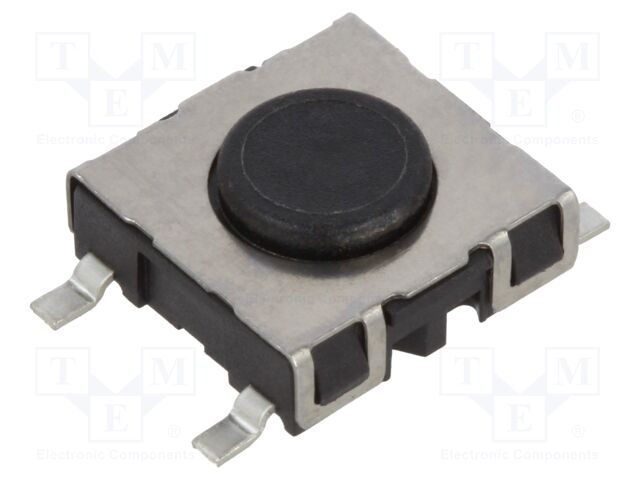

Schurter 1241.1600.11 | TME

TME

Production

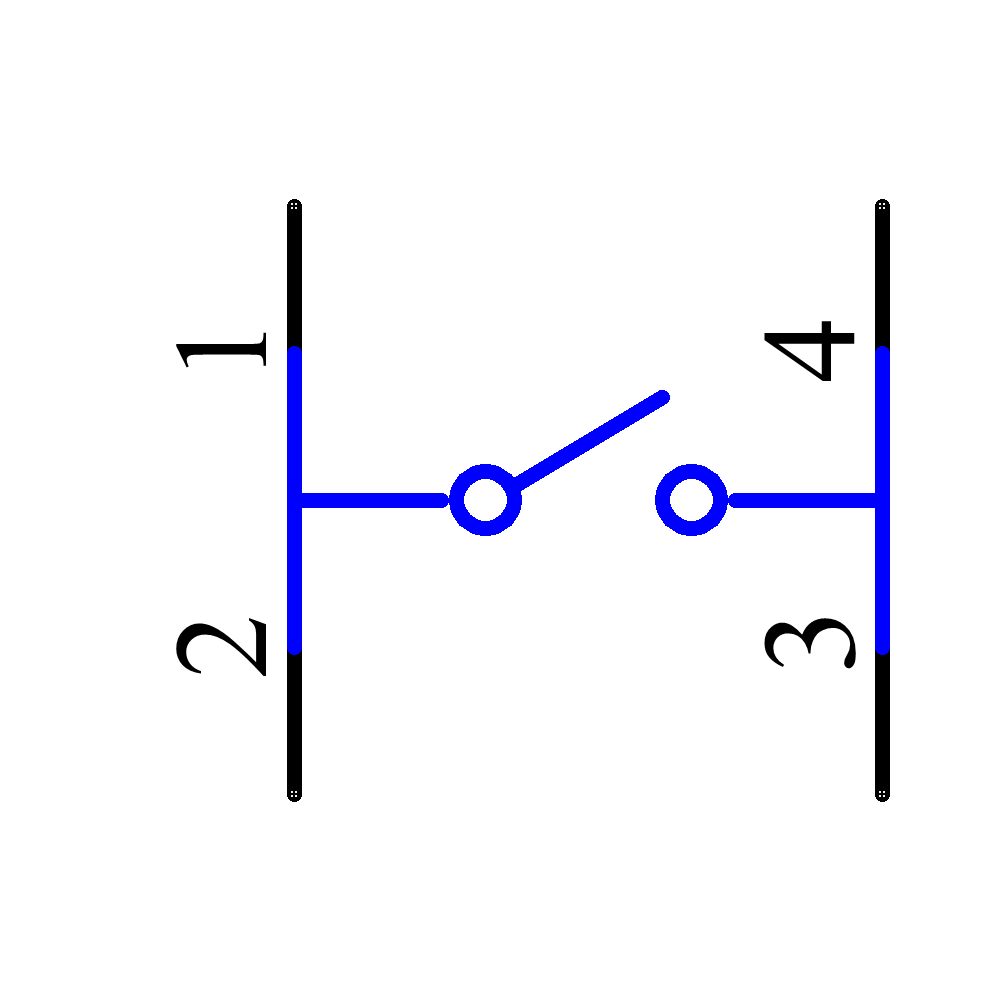

Symbol

‹ ›

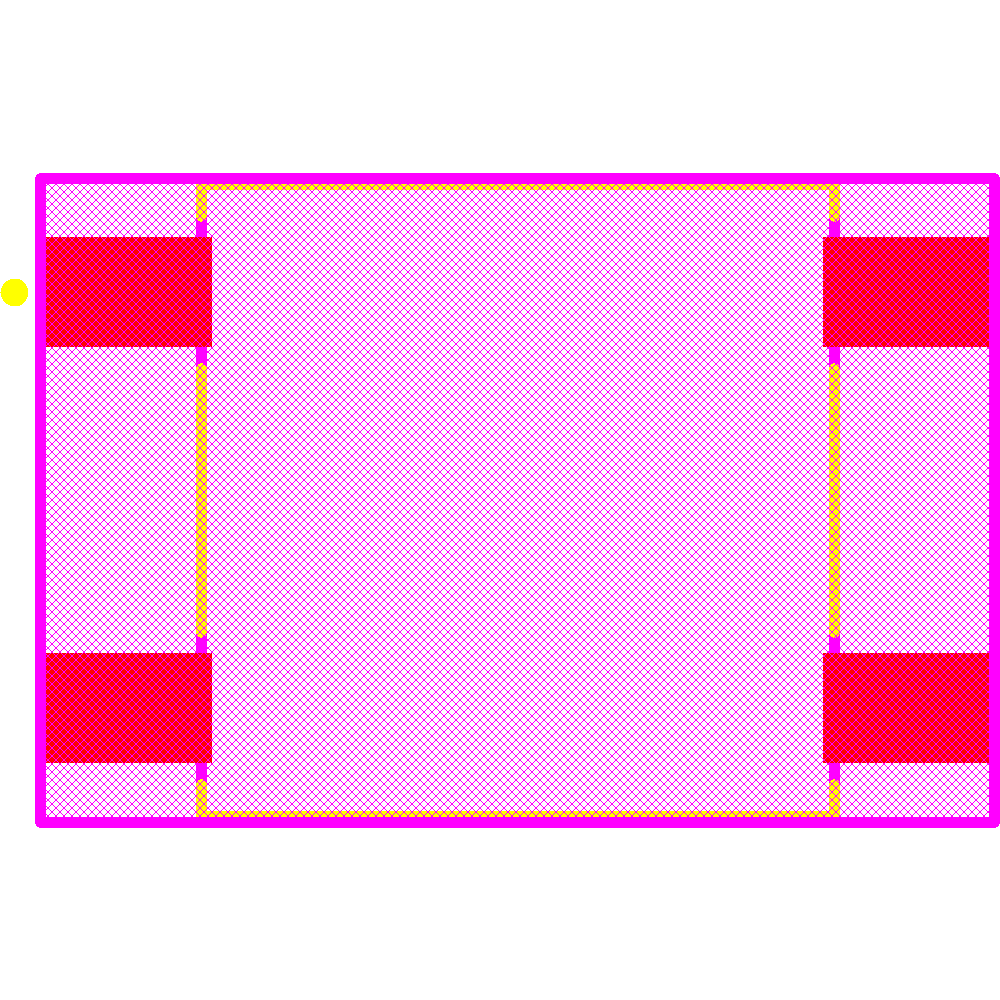

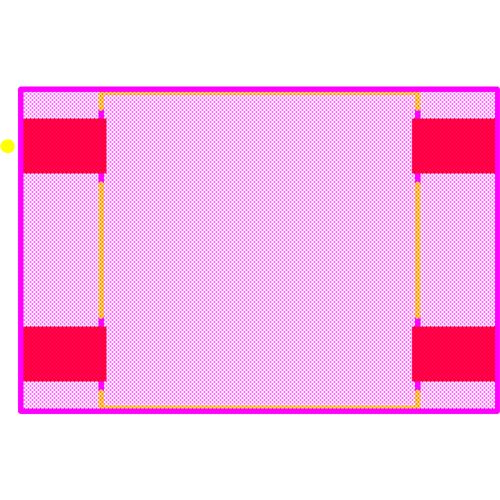

Footprint

‹ ›
