Electromechanical  >  Switches  >  Tactile Switches

Schurter - 1241.1601.11

1241.1601.11 - Schurter

Switch Tactile OFF-ON SPST-NO Round Button J-Lead 30VAC 42VDC 0.12VA 1000000Cycles 1.8N SMD

 Datasheets

Technical Details

Actuator Length 1.0414mm
Actuator Material Polyphenylene
Case/Package SMD/SMT
China RoHS Compliant
Contact Current Rating 50mA
Contact Material Brass
Contact Plating Tin
Contact Resistance 150mΩ
Contact Voltage Rating (AC) 30V
Current Rating 50mA
Depth 11.8mm
Export Control Classification Number (ECCN) Code EAR99
Electrical Life 1Mcycles
Height 3.65mm
Harmonized Tariff Schedule (HTS) Code 8536.50.90.40
Illumination Type Illuminated, Non-Illuminated
Insulation Resistance 100MΩ
Introduction Date 2002-01-29
Length 11.8mm
Life (Cycles) 1Mcycles
Lifecycle Status Production
Max Current Rating 50mA
Max Operating Temperature 85°C
Max Voltage Rating (AC) 30V
Max Voltage Rating (DC) 42V
Mechanical Life 1Mcycles
Min Operating Temperature -40°C
Mount Surface Mount
Number of Positions 1
Operating Force 2.2N
Orientation Straight
Packaging Box
Ratings IP40
REACH SVHC Yes
RoHS Compliant
Sealable IP40
Switch Function Off-Mom
Switch Travel 350µm
Terminal Material Brass
Termination J-Lead
Throw Configuration SPST
Voltage Rating (AC) 30V
Voltage Rating (DC) 42V
Weight 700.006425mg
Width 11.8mm

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

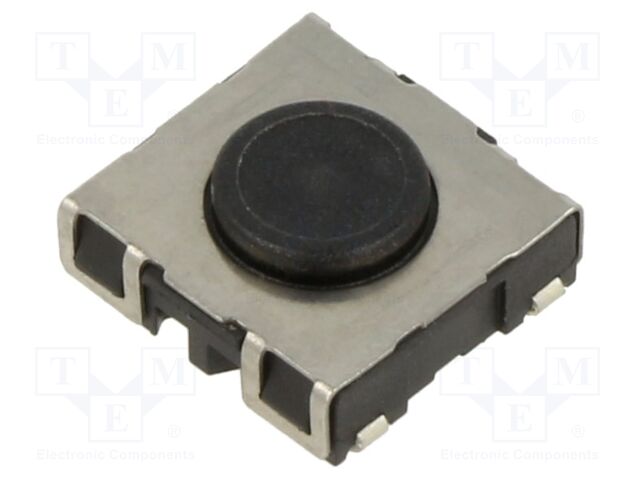

Schurter 1241.1601.11 | TME

TME

Datasheets

 TME
 DigiKey
 Farnell

Lifecycle Status Indicator

   Production

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Schurter
1241.1612.23
Production
Schurter
1241.1600.23
Production
Schurter
1241.1600.11
Production
Schurter
1241.1613.11
Production
Schurter
1241.1613.23
Production
Schurter
1241.1601.23
Production
Schurter
1241.1612.11
Production
E-Switch
TLE3303F260QG
Production
Schurter
1241.1607.23
Production
E-Switch
TL3303F260QG
Production

See more alternatives See less alternatives
