Technical Details
| Actuator Length | 1.2954mm |
| Actuator Material | Polyphenylene |
| Case/Package | SMD/SMT |
| China RoHS | Compliant |
| Contact Current Rating | 50mA |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Resistance | 150mΩ |
| Contact Voltage Rating (AC) | 30V |
| Current Rating | 50mA |
| Depth | 11.8mm |
| Electrical Life | 1Mcycles |
| Height | 3.65mm |
| Illumination Type | Non-Illuminated |
| Insulation Resistance | 100MΩ |
| Length | 11.8mm |
| Life (Cycles) | 1Mcycles |
| Lifecycle Status | Production |
| Max Current Rating | 50mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 30V |
| Max Voltage Rating (DC) | 42V |
| Mechanical Life | 1Mcycles |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Positions | 1 |
| Operating Force | 2.6N |
| Orientation | Straight |
| Radiation Hardening | No |
| Ratings | Dust Tight, IP67, Waterproof |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | IP67 |
| Switch Function | Off-Mom |
| Switch Travel | 350µm |
| Terminal Material | Brass |
| Termination | J-Lead |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 30V |
| Voltage Rating (DC) | 42V |
| Weight | 5.599995g |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

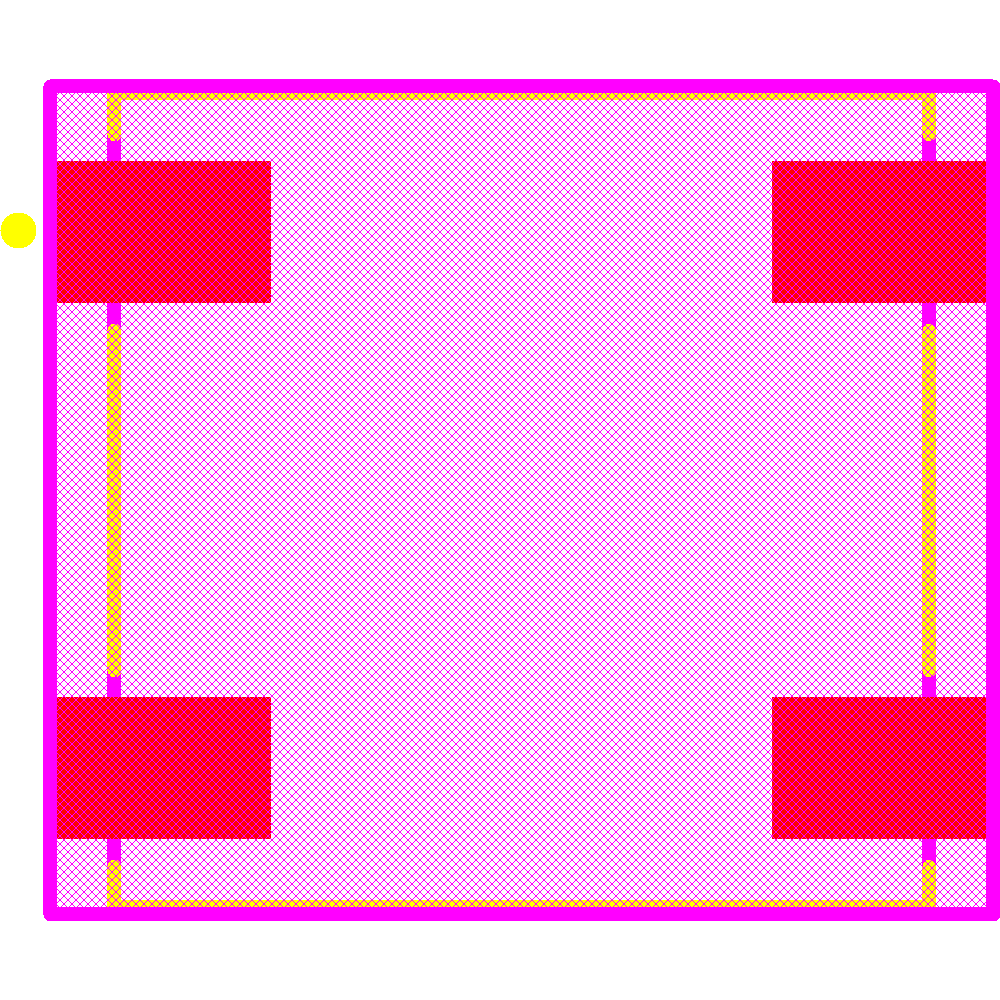

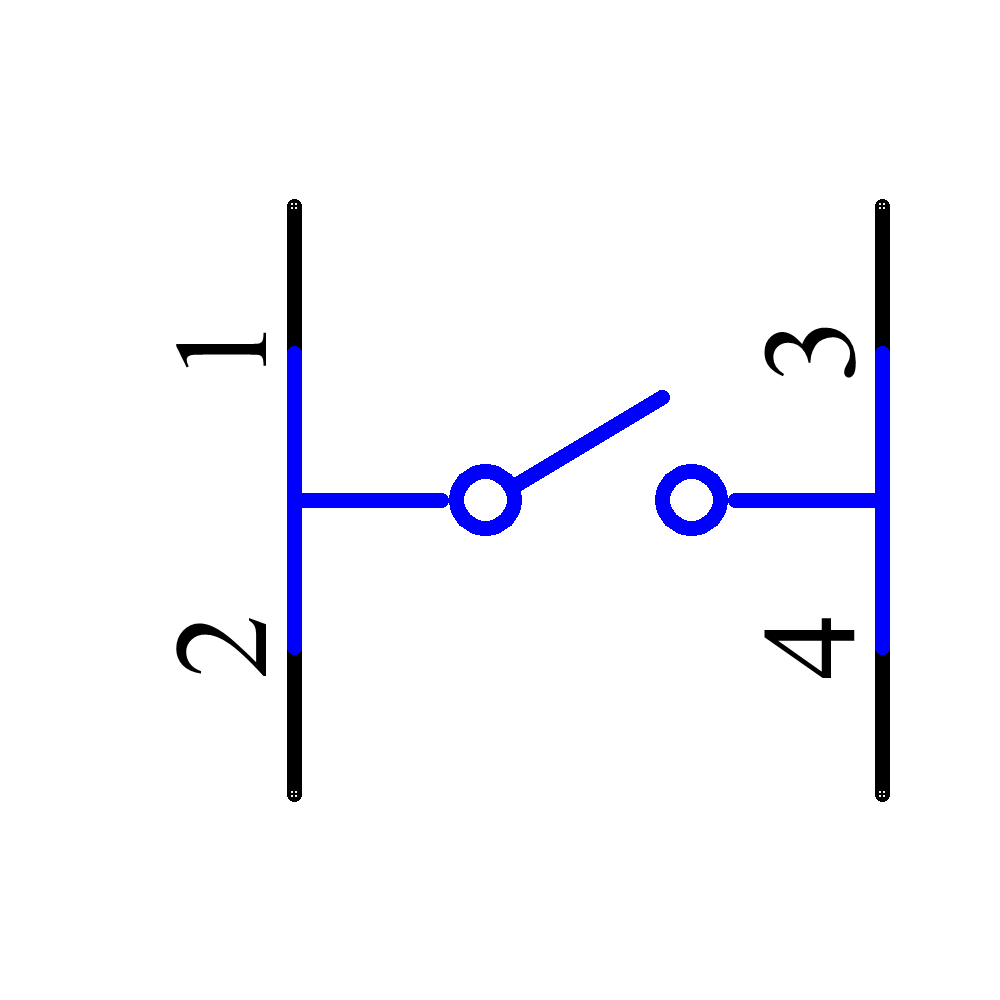

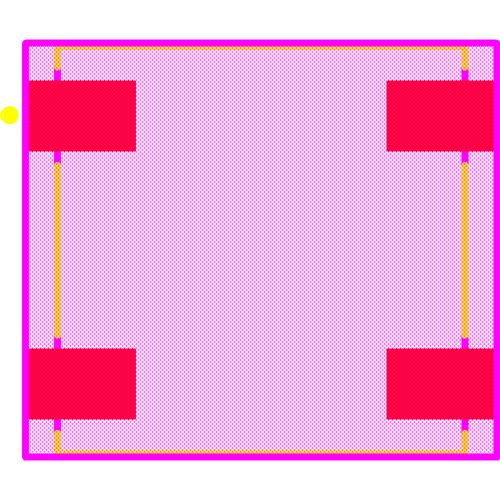

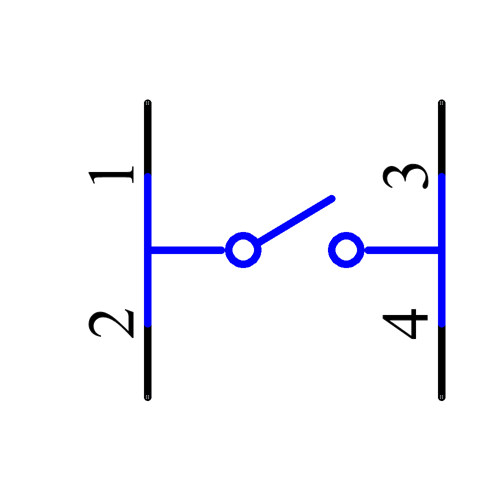

Images
