Electromechanical  >  Switches  >  Tactile Switches

Schurter - 1241.1612.23

1241.1612.23 - Schurter

Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 30VAC 42VDC 1000000Cycles 1.6N SMD T/R

 Datasheets

Technical Details

Actuator Length 4.0894mm
Actuator Material Polyphenylene
China RoHS Compliant
Contact Current Rating 50mA
Contact Material Brass
Contact Plating Tin
Contact Resistance 150mΩ
Contact Voltage Rating (AC) 30V
Current Rating 50mA
Depth 15.9mm
Export Control Classification Number (ECCN) Code EAR99
Electrical Life 1Mcycles
Height 3.65mm
Housing Material Polyamide
Harmonized Tariff Schedule (HTS) Code 8536.50.90.40
Illumination Type Non-Illuminated
Insulation Resistance 100MΩ
Introduction Date 2002-01-29
Lead Free Lead Free
Length 11.4mm
Life (Cycles) 1Mcycles
Lifecycle Status Production
Max Current Rating 50mA
Max Operating Temperature 85°C
Max Voltage Rating (AC) 30V
Max Voltage Rating (DC) 42V
Mechanical Life 1Mcycles
Min Operating Temperature -40°C
Mount Surface Mount
Number of Positions 1
Operating Force 2.2N
Orientation Straight
Radiation Hardening No
Ratings IP40
REACH SVHC Yes
RoHS Compliant
Sealable IP40
Switch Function Off-Mom
Switch Travel 350µm
Terminal Material Brass
Termination Gull Wing
Throw Configuration SPST
Voltage Rating (AC) 30V
Voltage Rating (DC) 42V
Weight 2.000002g

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

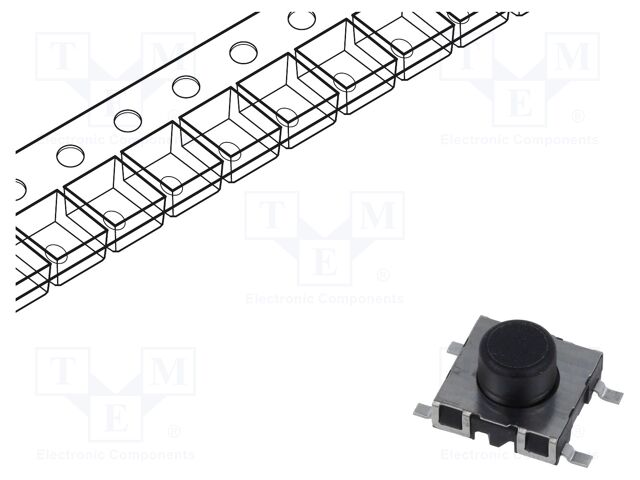

Schurter 1241.1612.23 | TME

TME

Datasheets

 Master Electronics
 Arrow Electronics
 Onlinecomponents.com

Lifecycle Status Indicator

   Production

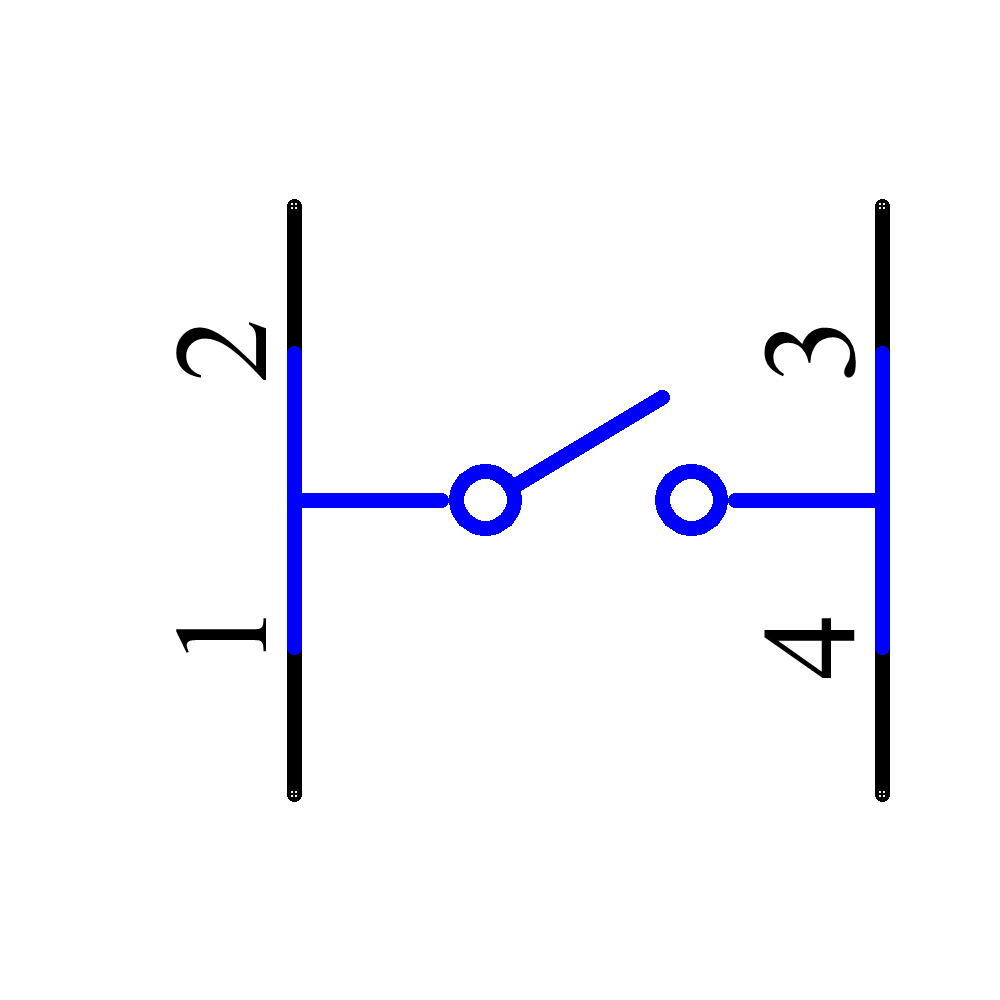

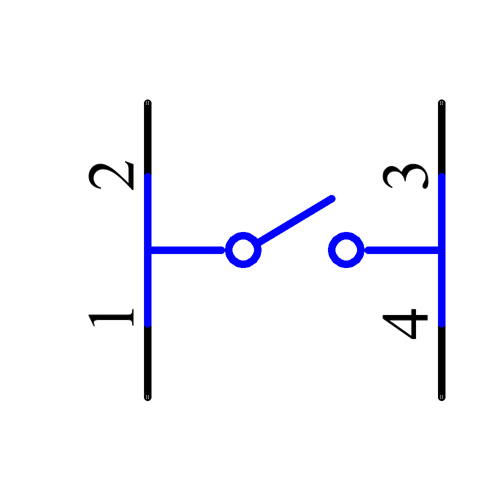

Symbol

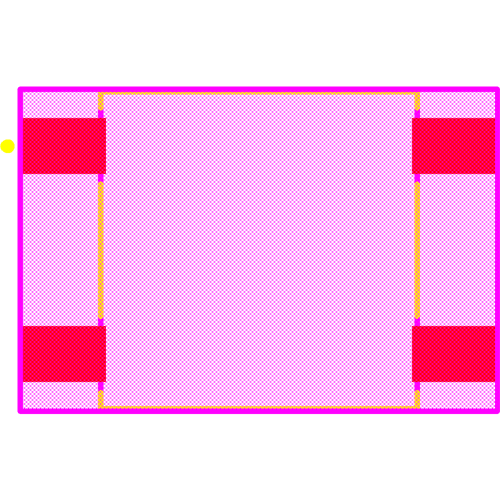

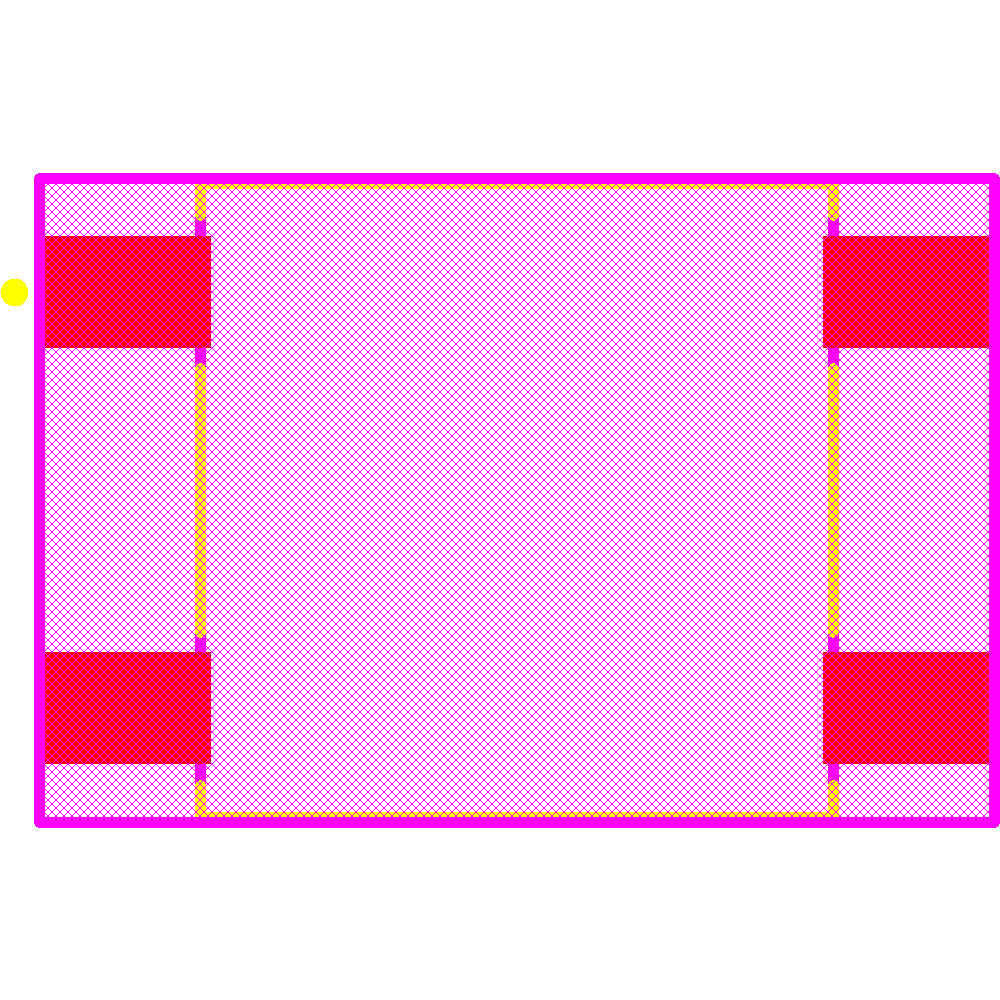

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Schurter
1241.1618.23
Production
Schurter
1241.1618.11
Production
Schurter
1241.1600.23
Production
Schurter
1241.1601.11
Production
Schurter
1241.1600.11
Production
Schurter
1241.1613.11
Production
Schurter
1241.1613.23
Production
Schurter
1241.1601.23
Production
Schurter
1241.1612.11
Production
C&K Components
PTS525SM10SMTRLFS
Obsolete

See more alternatives See less alternatives
