Technical Details
| Actuator Material | Polyphenylene |
| China RoHS | Compliant |
| Contact Current Rating | 50mA |
| Contact Plating | Tin |
| Contact Resistance | 50mΩ |
| Current Rating | 50mA |
| Height | 7.6mm |
| Illumination Type | Non-Illuminated |
| Life (Cycles) | 1Mcycles |
| Lifecycle Status | Production |
| Max Current Rating | 50mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 30V |
| Max Voltage Rating (DC) | 42V |
| Mechanical Life | 1Mcycles |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Positions | 1 |
| Operating Force | 2.2N |
| Radiation Hardening | No |
| Ratings | Dust Tight, IP67, Waterproof |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switch Function | Off-Mom |
| Switch Travel | 350µm |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 30V |
| Voltage Rating (DC) | 42V |
| Weight | 99.988768mg |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

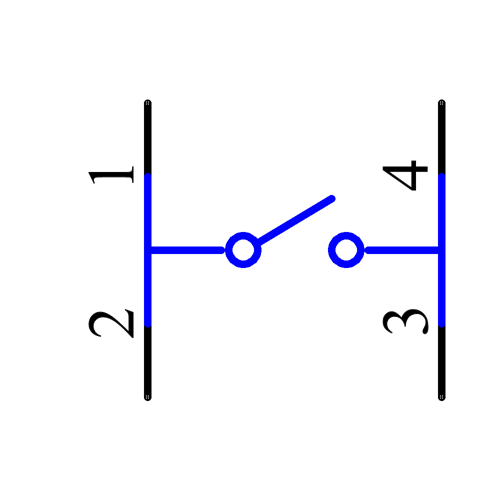

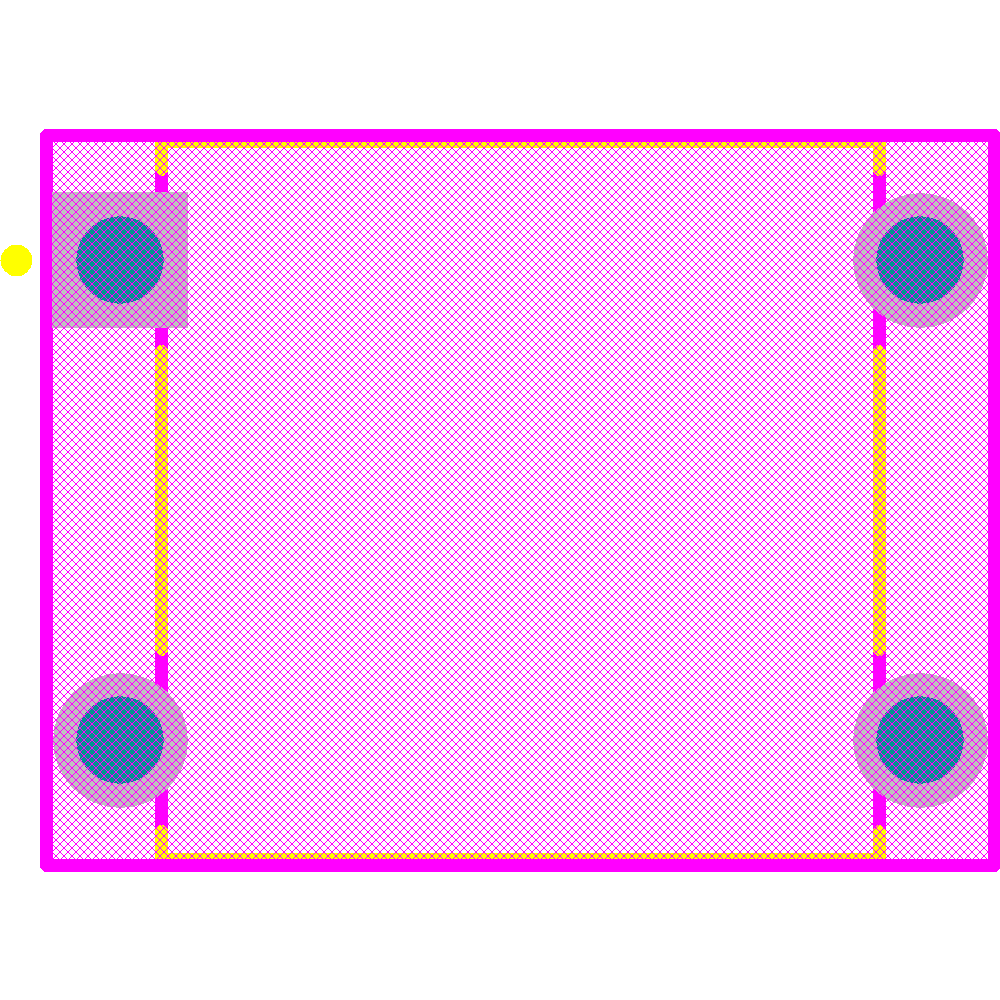

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Schurter | Production | ||
| Schurter | Production | ||
| Schurter | Production | ||
| Schurter | Production | ||
| Schurter | Production | ||
| Schurter | Production | ||
| Schurter | Production | ||
| Schurter | Production | ||
| Schurter | Production | ||
| Schurter | Production |
