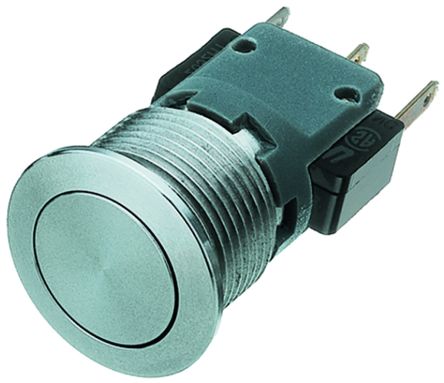

1241.6611.1110000 - Schurter
Pushbutton Switch, SPDT, Momentary, 0.1A, 30VDC, Quick Connect Terminal, Panel Mount
Technical Details
| Actuator Material | Stainless Steel |
| Case/Package | Metal |
| Contact Current Rating | 100mA |
| Contact Material | Gold, Silver |
| Contact Plating | Gold |
| Contact Resistance | 50mΩ |
| Contact Voltage Rating (DC) | 30V |
| Current Rating | 100mA |
| Depth | 19mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 200kcycles |
| Height | 33.4mm |
| Housing Material | Stainless Steel |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.31 |
| Illumination Type | Illuminated |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2006-06-01 |
| Length | 16mm |
| Lifecycle Status | Obsolete |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 1.5Mcycles |
| Min Operating Temperature | -25°C |
| Mount | Front, Panel |
| Number of Positions | 2 |
| Operating Force | 4.5N |
| Packaging | Box |
| Radiation Hardening | No |
| Ratings | IP40 |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | IK06, IP40 |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating | 30V |
| Voltage Rating (DC) | 30V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
