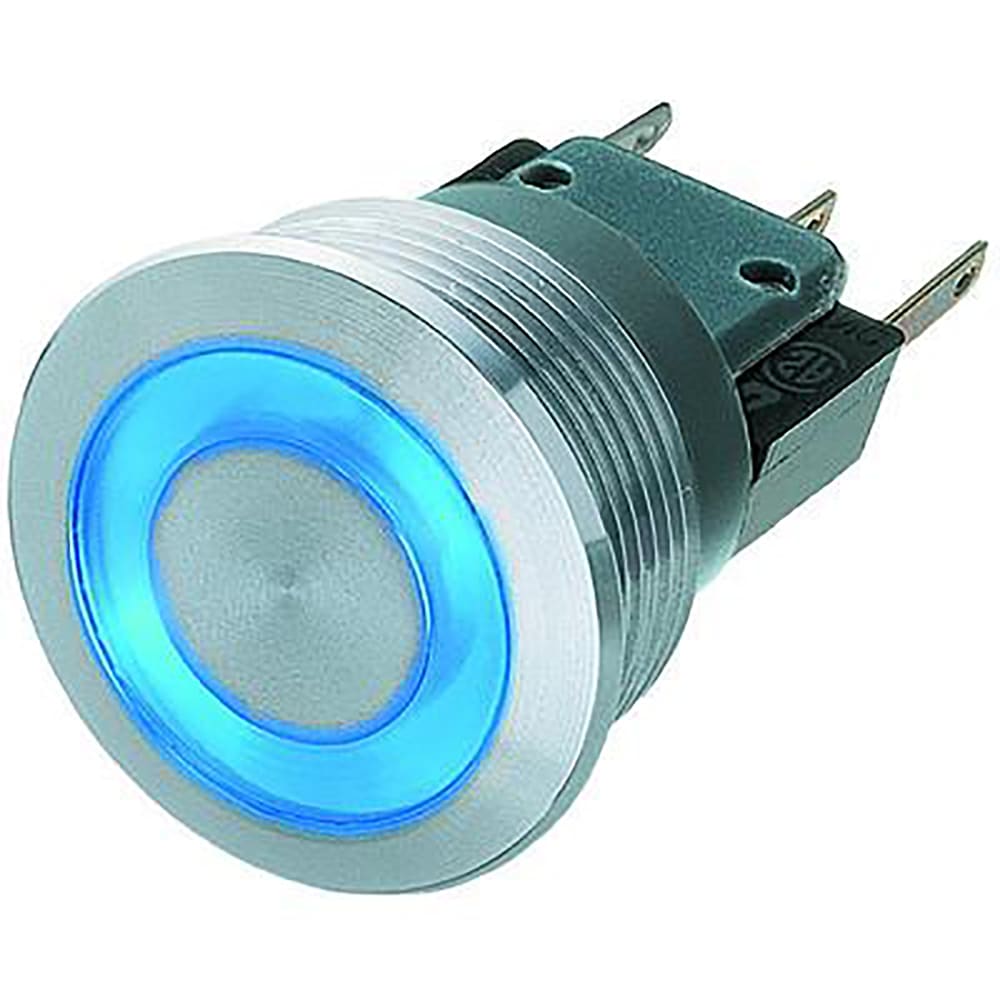

1241.6621.1110000 - Schurter
Switch Push Button N.O./N.C. SPDT Flush Round Button 0.1A 30VDC Panel Mount Quick Connect Box
Technical Details
| Actuator Material | Stainless Steel |
| Color | Silver |
| Contact Material | Gold |
| Current Rating | 100mA |
| Depth | 22mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 200kcycles |
| Height | 31.75mm |
| Housing Material | Stainless Steel |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.70.00 |
| Introduction Date | 2006-06-01 |
| Lead Free | Lead Free |
| Length | 22mm |
| Lifecycle Status | Obsolete |
| Material | Stainless Steel |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 1.5Mcycles |
| Min Operating Temperature | -25°C |
| Mount | Front, Panel |
| Number of Positions | 2 |
| Operating Force | 3.7N |
| Radiation Hardening | No |
| Ratings | IP40 |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (DC) | 30V |
| Weight | 28.500002g |
| Width | 76.2mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
Images
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Mouser |
US: 10
|
$ | 22.28 | 18.93 | 16.24 | 15.71 | 14.31 | 14.31 | ||
