1241.6621.1120000 - Schurter
Switch Push Button N.O./N.C. SPDT Flush Round Button 5A 250VAC Panel Mount Quick Connect Box
Technical Details
| Actuator Diameter | 15.8mm |
| Actuator Material | Stainless Steel |
| Approvals | UL |
| Case/Package | Metal |
| Contact Current Rating | 5A |
| Contact Material | Silver |
| Contact Plating | Silver |
| Contact Resistance | 30mΩ |
| Current Rating | 5A |
| Depth | 22mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 200kcycles |
| Height | 38.1mm |
| Housing Material | Stainless Steel |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.70.00 |
| Illumination Type | Illuminated |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2006-06-01 |
| Lead Free | Lead Free |
| Length | 22mm |
| Life (Cycles) | 200kcycles |
| Lifecycle Status | Obsolete |
| Material | Stainless Steel |
| Max Current Rating | 5A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 250V |
| Mechanical Life | 1.5Mcycles |
| Min Operating Temperature | -25°C |
| Mount | Front, Panel |
| Number of Positions | 2 |
| Operating Force | 4.5N |
| Orientation | Vertical |
| Radiation Hardening | No |
| Ratings | IP40, IP67 |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switch Function | On-Mom |
| Termination | Quick Connect |

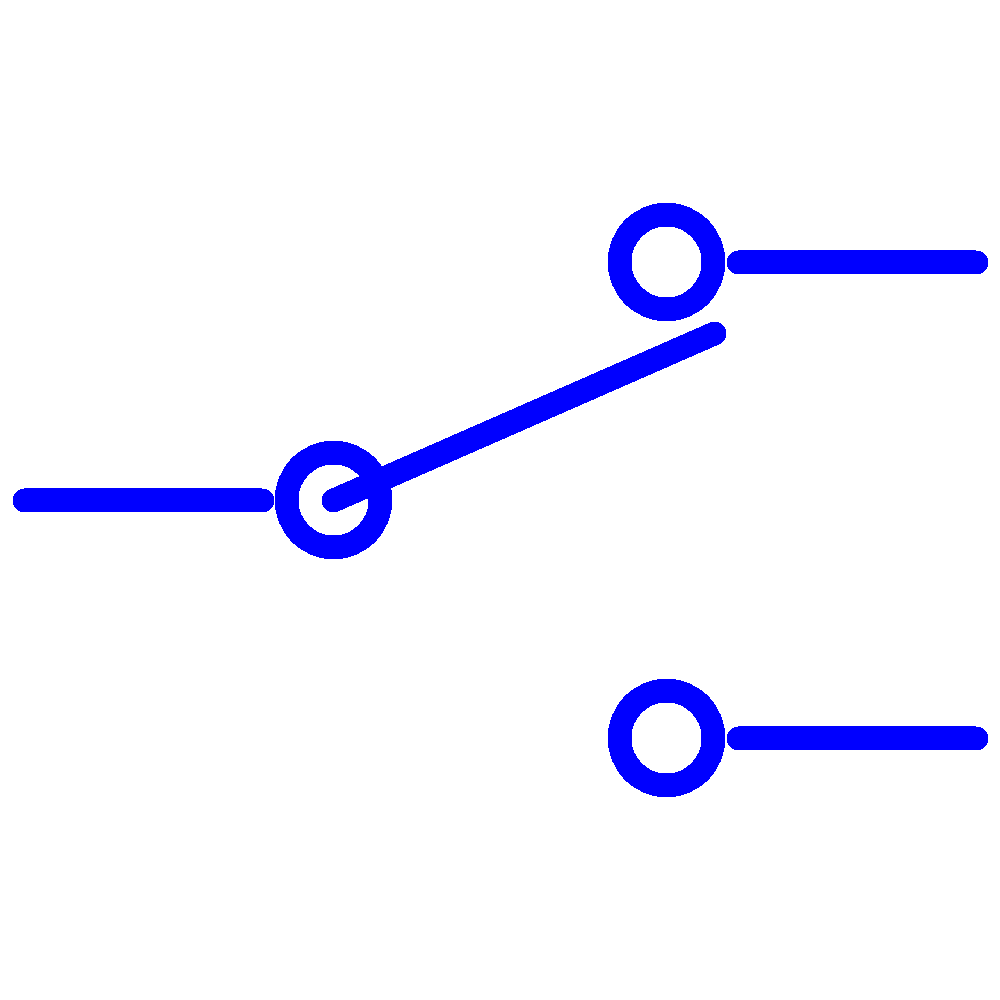

| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| Weight | 18.143695g |
| Width | 101.6mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
