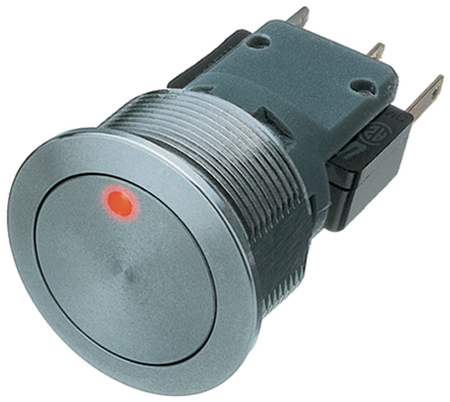

1241.6623.1121000 - Schurter
Switch Push Button N.O./N.C. SPDT Flush Round Button 5A 250VAC Panel Mount Quick Connect Box
Technical Details
| Actuator Length | 12.4968mm |
| Actuator Material | Stainless Steel |
| Case/Package | Metal |
| Color | Red |
| Contact Current Rating | 5A |
| Contact Material | Silver |
| Contact Plating | Silver |
| Contact Resistance | 30mΩ |
| Contact Voltage Rating (AC) | 125V |
| Current Rating | 5A |
| Electrical Life | 200kcycles |
| Forward Current | 40mA |
| Height | 33.4mm |
| Housing Material | Stainless Steel |
| Illumination Color | Red |
| Illumination Type | Illuminated, LED |
| Insulation Resistance | 100MΩ |
| Lead Free | Lead Free |
| Length | 19mm |
| Lifecycle Status | Obsolete |
| Material | Stainless Steel |
| Max Operating Temperature | 85°C |
| Mechanical Life | 1.5Mcycles |
| Min Operating Temperature | -25°C |
| Mount | Front, Panel |
| Number of Positions | 2 |
| Operating Force | 4.5N |
| Packaging | Box |
| Radiation Hardening | No |
| Ratings | IP40, IP67 |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | IK07, IP40 |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
Images
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Farnell |
DE: 0
|
$ | 34.2086 | 30.2885 | 26.3683 | 26.3683 | 26.3683 | 26.3683 | ||
