3402.0016.24 - Schurter
SMD-Fuse 7.4 x 3.1 mm, 4 A, F, 63 V (DC), 63 V (AC), 50 A breaking capacity, 3402.0016.24
Technical Details
| Approvals | CSA, UL, cURus |
| Case/Package | SMD/SMT |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Current Rating | 4A |
| Depth | 3.1mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Flammability Rating | UL94 V-0 |
| Height | 2.6mm |
| Housing Material | Thermoplastic |
| Harmonized Tariff Schedule (HTS) Code | 8536.10.00.40 |
| Introduction Date | 2001-03-16 |
| Lead Free | Lead Free |
| Length | 7.4mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Max Voltage Rating (AC) | 63V |
| Max Voltage Rating (DC) | 63V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Pins | 2 |
| Packaging | Bulk |
| Power Dissipation | 560mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Voltage Rating | 63V |
| Voltage Rating (AC) | 63V |
| Voltage Rating (DC) | 63V |
| Weight | 99.988768mg |
| Width | 3.0988mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

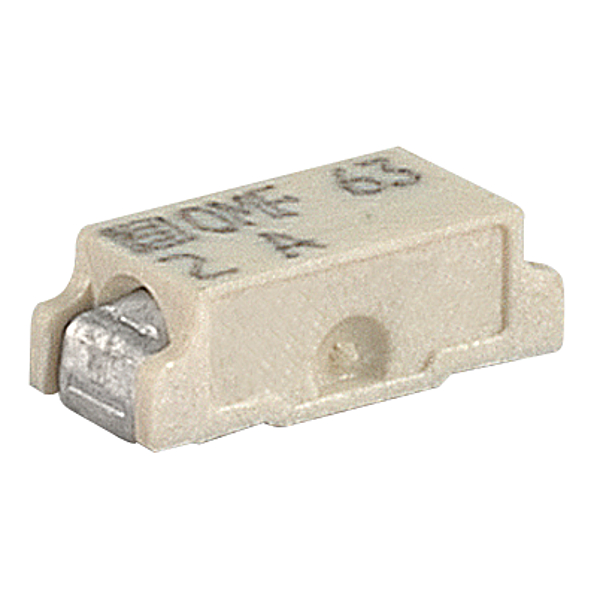

Images
