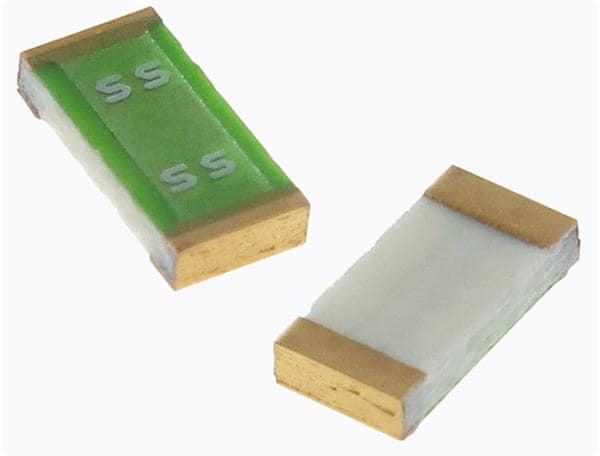

3413.0330.26 - Schurter
SMD Fuse, Time Delay, 15 A, 32 VAC, 63 VDC, 1206 [3216 Metric], UST 1206
Technical Details
| Approvals | cULus, cURus |
| Case/Package | 1206 |
| China RoHS | Compliant |
| Contact Material | Copper |
| Contact Plating | Gold |
| Current Rating | 15A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 600µm |
| Harmonized Tariff Schedule (HTS) Code | 8536.10.00.40 |
| Introduction Date | 2008-07-15 |
| Length | 3.2mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Voltage Rating | 63V |
| Voltage Rating (AC) | 32V |
| Voltage Rating (DC) | 63V |
| Weight | 10.007382mg |
| Width | 1.6mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
