3413.0332.26 - Schurter
Electric Fuse, Time Lag Blow, 25A, 32VAC, 63VDC, 100A (IR), Surface Mount, 3.2x1.6mm
Technical Details
| Approvals | cULus, cURus |
| Case/Package | 1206 |
| China RoHS | Compliant |
| Contact Material | Copper |
| Contact Plating | Gold |
| Current Rating | 25A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 600µm |
| Harmonized Tariff Schedule (HTS) Code | 8536.10.00.40 |
| Introduction Date | 2008-07-15 |
| Length | 3.2mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Voltage Rating | 63V |
| Voltage Rating (AC) | 32V |
| Voltage Rating (DC) | 63V |
| Weight | 10.007382mg |
| Width | 1.6mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

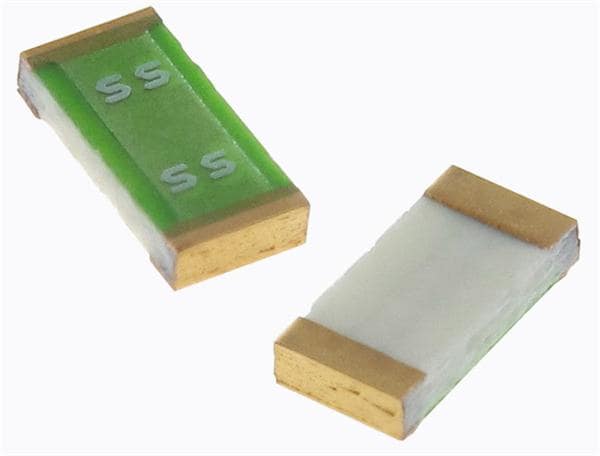

Images
Sager Electronics
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Chipsmall Limited |
CN: 1070317
|
$ | 0.782 | 0.5214 | 0.5214 | 0.3128 | 0.2607 | 0.2607 | ||
