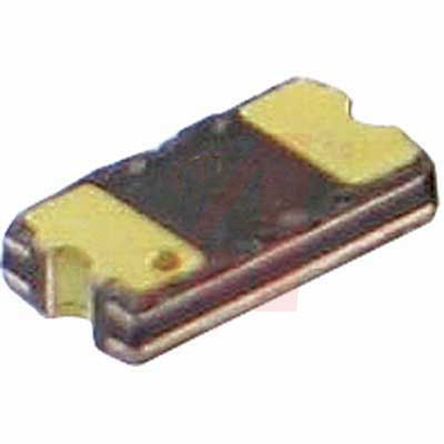

PFNF.050.2 - Schurter
PTC Resettable Fuse 0.5A(hold) 1A(trip) 13.2VDC 100A 0.4W 0.1s 0.15Ohm SMD Solder Pad 1206 T/R
Technical Details
| Approvals | CSA, UL |
| Case/Package | 1206 |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Current Rating | 100A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 850µm |
| Hold Current | 500mA |
| Harmonized Tariff Schedule (HTS) Code | 8533.40.80.70 |
| Introduction Date | 2005-02-17 |
| Length | 3.4mm |
| Lifecycle Status | Production |
| Max Current Rating | 100A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 13.2V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Terminals | 2 |
| Power Dissipation | 400mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Resistance | 150mΩ |
| RoHS | Compliant |
| Terminal Material | Electroless Nickel |
| Termination | SMD/SMT |
| Time to Trip | 100ms |
| Trip Current | 1A |
| Voltage Rating | 13.2V |
| Voltage Rating (DC) | 13.2V |
| Weight | 6.010099mg |
| Width | 1.8mm |
| Working Voltage | 13.2V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
