PFRA.020 - Schurter
PTC Resettable Fuse 0.2A(hold) 0.4A(trip) 60VDC 40A 0.4W 2.2s 1.5Ohm Radial 7.4 X 3.1mm Bulk Automotive
Technical Details
| Approvals | CSA, UL |
| Case/Package | Radial |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Current Rating | 40A |
| Diameter | 7.4mm |
| Height | 12.7mm |
| Hold Current | 200mA |
| Lead Diameter | 510µm |
| Lead Free | Lead Free |
| Lead Pitch | 5.8mm |
| Length | 7.4mm |
| Lifecycle Status | Production |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 60V |
| Min Operating Temperature | -40°C |
| Mount | PCB, Through Hole |
| Number of Terminals | 2 |
| Packaging | Bulk |
| Power Dissipation | 400mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Resistance | 1.5Ω |
| RoHS | Compliant |
| Terminal Material | Tin |
| Termination | Radial |
| Time to Trip | 2.2s |
| Trip Current | 400mA |
| Voltage Rating | 60V |
| Voltage Rating (DC) | 60V |
| Weight | 130.010913mg |
| Width | 3.1mm |
| Working Voltage | 60V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

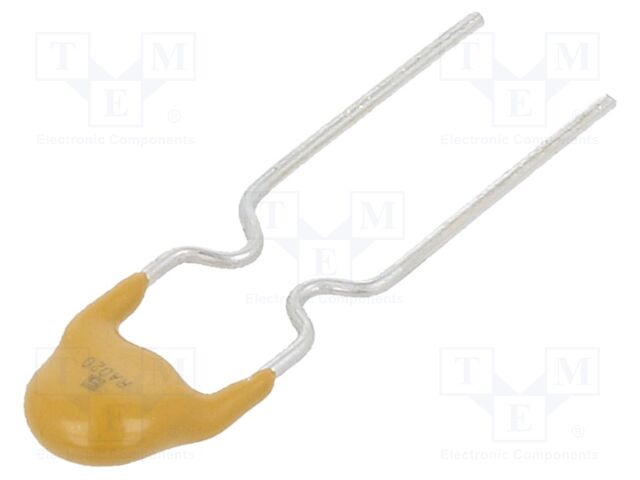

Images
