Circuit Protection  >  PTC Resettable Fuses

Schurter - PFRA.025

PFRA.025 - Schurter

PTC Resettable Fuse 0.25A(hold) 0.5A(trip) 60VDC 40A 0.45W 2.5s 1Ohm Radial 7.4 X 3.1mm Bulk Automotive

 Datasheets

Technical Details

Approvals CSA, UL
Case/Package Radial
China RoHS Compliant
Contact Plating Tin
Diameter 7.4mm
Export Control Classification Number (ECCN) Code EAR99
Height 12.7mm
Hold Current 250mA
Harmonized Tariff Schedule (HTS) Code 8533.40.80.70
Introduction Date 2001-03-01
Lead Free Lead Free
Lead Pitch 5.8mm
Length 7.4mm
Lifecycle Status Production
Max Current Rating 40A
Max Operating Temperature 85°C
Max Voltage Rating (DC) 60V
Min Operating Temperature -40°C
Mount PCB
Number of Terminals 2
Packaging Bulk
Power Dissipation 450mW
Radiation Hardening No
REACH SVHC Yes
Resistance 1Ω
RoHS Compliant
Terminal Material Tin
Termination Radial
Time to Trip 2.5s
Trip Current 500mA
Voltage Rating 60V
Voltage Rating (DC) 60V
Weight 149.997327mg
Width 3.1mm
Working Voltage 60V

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

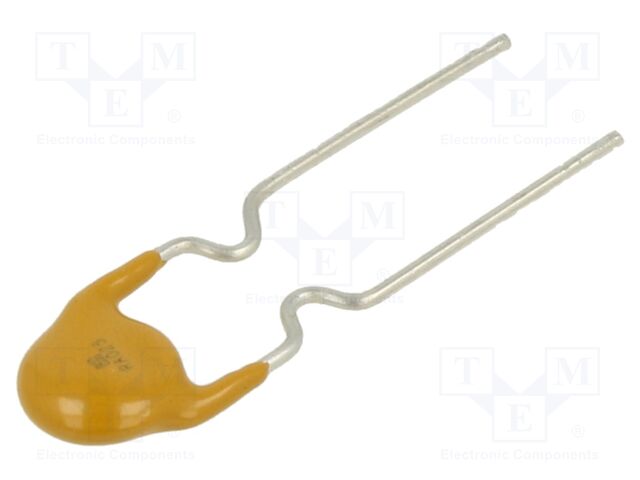

Schurter PFRA.025 | TME

TME

Datasheets

 Master Electronics
 Onlinecomponents.com
 Schukat

Lifecycle Status Indicator

   Production

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Bourns
MF-R025-AP-99
Obsolete
Bourns
MF-R025
Production
Bourns
MF-R025-2-99
Obsolete
Bourns
MF-R025-2
Production
Bourns
MF-R025-0-99
Obsolete
Bourns
MF-R025-AP
Production
Bourns
MF-R020-2-99
Obsolete
Schurter
PFRA.010
Production
Littelfuse
60R010XPR
Production
Littelfuse
60R025XPR
Production

See more alternatives See less alternatives
