PFRA.050 - Schurter
PTC Resettable Fuse 0.5A(hold) 1A(trip) 60VDC 40A 0.75W 4s 0.41Ohm Radial 7.9 X 3.1mm Bulk Automotive
Technical Details
| Approvals | CSA, UL |
| Case/Package | Radial |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Current Rating | 40A |
| Diameter | 7.9mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 13.7mm |
| Hold Current | 500mA |
| Harmonized Tariff Schedule (HTS) Code | 8533.40.80.70 |
| Introduction Date | 2001-03-01 |
| Lead Diameter | 510µm |
| Lead Free | Lead Free |
| Lead Pitch | 5.8mm |
| Length | 7.9mm |
| Lifecycle Status | Production |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 60V |
| Min Operating Temperature | -40°C |
| Mount | PCB, Through Hole |
| Number of Terminals | 2 |
| Packaging | Bulk |
| Power Dissipation | 750mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Resistance | 410mΩ |
| RoHS | Compliant |
| Termination | Radial |
| Time to Trip | 4s |
| Trip Current | 1A |
| Voltage Rating | 60V |
| Voltage Rating (DC) | 60V |
| Weight | 229.999681mg |
| Width | 3.1mm |
| Working Voltage | 60V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

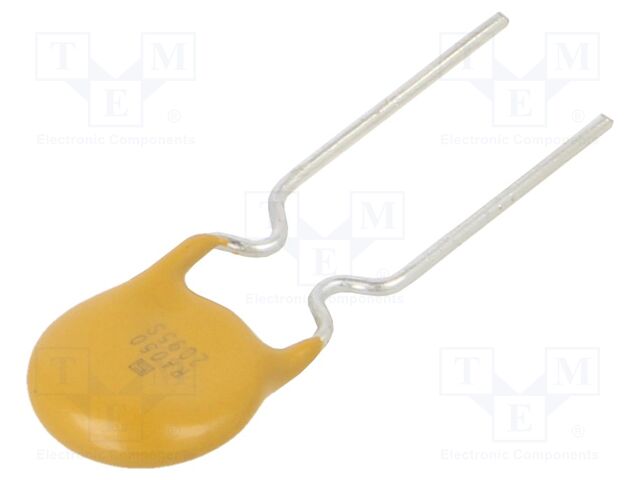

Images
